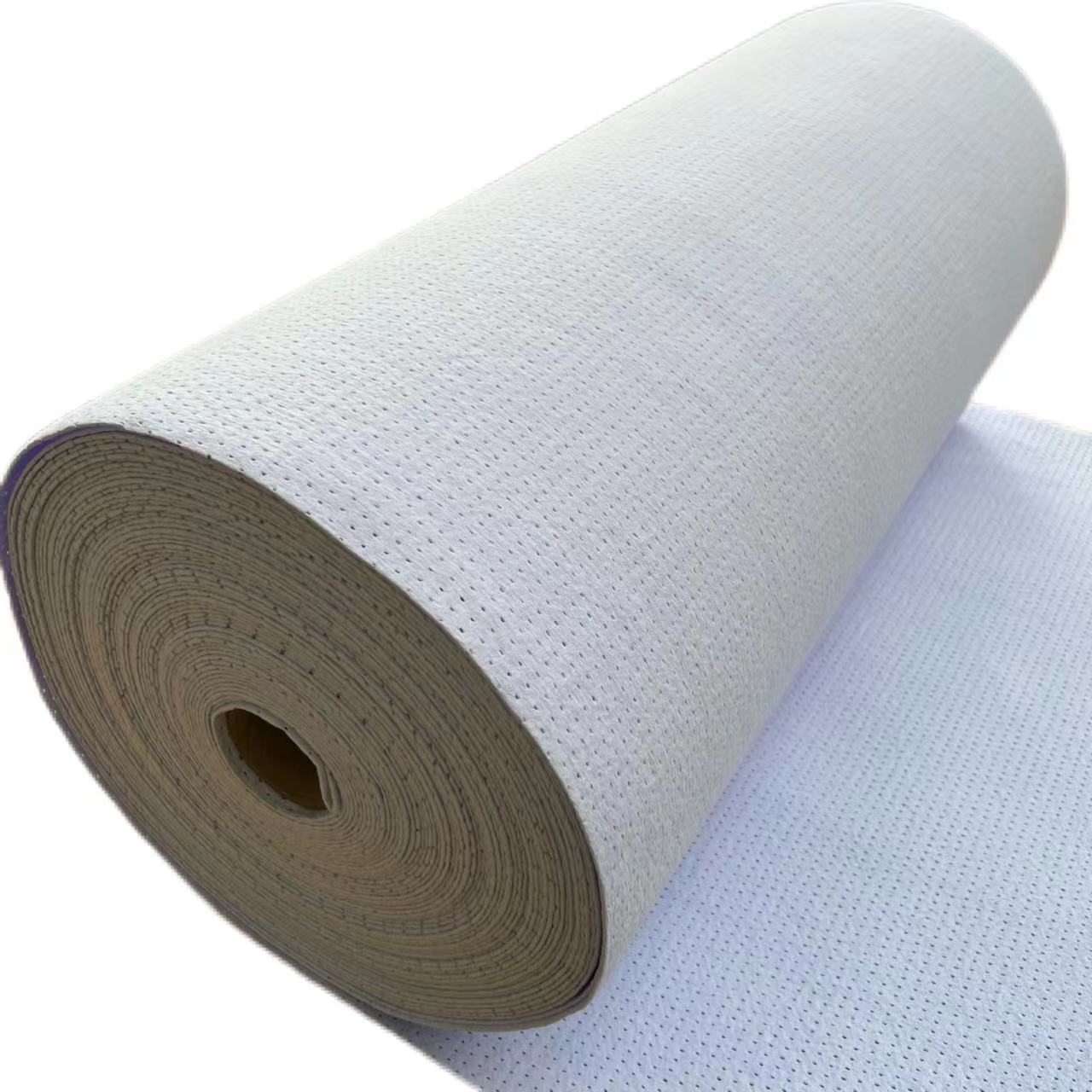

Coremat Xi nonwoven solution for composites industry saves resin and glass increases stiffness

Product Detail

Softness:greatapplication:FRP production
Roll length:130m-30mMat Type:Facing (Paving) Mats
Package preview:Supply capacity:1,000,000 square meters per month
technology:Chopped Fiberglass Mat (CSM)Roll width:1 meter
model:habitbrand:Rand
Origin:Guangdong, Chinacolor:white
Fiberglass Type:Alkali free glassProcessing services:Bending, uncoiling, forming, welding, punching, cutting
thickness:1.4-5mmpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Product Description
Nonwoven cores and liners for hand lay-up and spraying processes Coremat is a polyester nonwoven containing microspheres used as a thin core (bulk mat) or as a printed barrier (liner) in fiber reinforced laminates, Manufactured in Hand Lay-Up or Spray-Up process. Coremat should always be fully impregnated with resin. Microspheres in Coremat prevent excessive resin absorption.
Product advantages
Resin and glass savings Increased stiffness Rapid thickening Excellent surface finish
Coremat Xi is the world standard in bulk mats.
application
Marine (hulls, decks and superstructures of boats and yachts) Transportation (parts and panels of automobiles, trailers, trucks. Motorhomes) Public transportation (trains, light rail, bus interiors and exteriors) Leisure (kayaks, surfboards, Swimming pools, bathtubs) Industrial (cladding panels, containers, storage tanks) Wind energy (nacelles, spinners)
Technical data
Xi 1mm
Xi 2mm
Xi 3mm
Xi 4mm
Xi 5mm
Thickness (mm)
1.4
2
3
4
5
Roll length(m)
130
80
50
40
30
Roll width(m)
1
1
1
1
1
Resin absorption (kg/㎡)
0.8
1.2
1.8
2.4
3.0
Dry weight (g/㎡)
35
62
88
114
125
Impregnation density (kg/㎡)
630
630
630
630
630
VIEW MORE
