High Purity Smelted Cast Iron Graphite Crucible

Product Detail

Shipping Details:Within 15 days for bulk, within 3 days for samplesAsh content:≤0.05%
Compressive strength:≥65MPadensity:Depends on the type of crucible
model:Requiresample:supply
application:molten metalMaterial:carbon/silicon
Bottom diameter:40-1000mmpayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
type:high strengthPackaging Details:1. Neutral carton 2. Wooden box 3. Customized special carton
Resistivity:≤13μΩ.mSupply capacity:100,000 graphite crucibles for casting per month
work:High purityTop Diameter:20-1000mm
Grain Size:0.02mm-4mmport:Shanghai, Ningbo, etc.
Key words:Graphite crucible for castingbrand:geographic information system
high:RequireOrigin:China
Bending strength:≥45MPaprice:factory price
Product Description



High Purity Smelted Cast Iron Graphite Crucible









introduce

1. Graphite crucible can be used for non-ferrous metal smelting and casting, gold melting

Or silver jewelry, analysis of special steel, sintered carbide.



2. Graphite crucible for alchemy is specially used for smelting gold in hat decoration and jewelry industry. This requires graphite materials to have the characteristics of high density, high purity, ablation resistance, and reusability. We can process all kinds of crucibles according to customers' requirements.



3. Made of high-purity graphite, it is widely used in the smelting of gold, silver, platinum and other precious metals. If used in an oxygen atmosphere, it will start to oxidize when the temperature is higher than 700-800°C. If used in a protective atmosphere, it can withstand high temperatures above 2000°C.



4. Widely used in industrial furnaces, monocrystalline silicon machinery, monocrystalline silicon machinery, electronics, semiconductors, metallurgy, petroleum, chemical industry, textiles, electrical machinery, electrical equipment, electric furnaces, transportation, communications and other industries, medicine, etc.



feature:
Graphite/carbon crucible has the characteristics of high density, low resistivity, oxidation resistance, corrosion resistance, high temperature resistance, good electrical conductivity, etc.

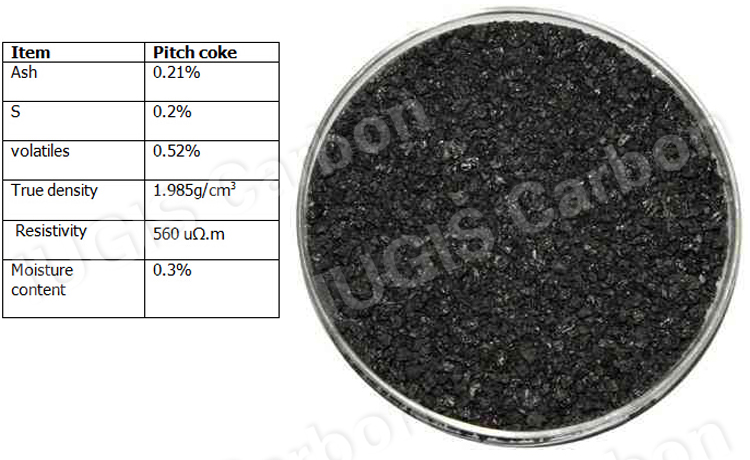

High quality material - pitch coke

We use the best graphite materials to produce our carbon graphite products!

Graphite crucible parts size

type

ejection diameter

(mm)

Overall height (mm)

Bottom outer diameter

(mm)

Body thickness (mm)

bottom thickness

(mm)

U1

70

78

46

9

12

U2

87

108

60

9

13

U3

102

120

71

10

13

U4

112

131

80

11

15

U5

121

141

83

11

15

U6

137

169

94

13

17

U7

148

186

100

14

18

U20

183

232

120

18

twenty two

U100

321

379

213

29

36

U600

580

610

380

45

55



Silicon graphite crucible parts size

Nr.order ca.kg Copper

h

(mm)

Man

(mm)

d

(mm)

Nr.order ca.kg Copper

h

(mm)

Man

(mm)

d

(mm)

01}

70

60

41

100

400

325

230

11}

Post-90s

Post-90s

55

120

410

345

245

51}

150

125

85

150

450

370

260

10

200

160

115

175

480

380

270

15

230

180

120

200

500

400

285

20

255

200

140

250

515

420

300

25

260

220

150

300

540

440

315

30

290

230

160

350

590

475

330

40

310

260

190

400

600

500

340

50

330

270

195

500

650

510

350

60

345

285

200

600

680

530

380

70

360

295

205

800

800

560

380

80

375

305

215

1000

820

635

420

Post-90s

380

315

225

1100

890

635

420

100

400

325

230

1500

900

780

435



Silicon graphite crucible technical parameters

chemical result

physical result

silicon carbide, silicon

40-60%

density

2.0-2.2 g/cm3

graphite, carbon

30-45%

Apparent porosity

14-19%

Al2Europe3

3-10%

Cold bending strength

13-20MPa

Bending strength

10-15MPa





application



We supply graphite carbon/graphite crucibles for melting gold, silver, jewelry and other metals.



High-purity graphite parameters

thing

unit

High purity graphite

baked twice

bake three times

baked four times

Dipping once

Dipping twice

Dipping three times

grain size

mm

≤325 mesh

≤325 mesh

≤325 mesh

Bulk density

g/cubic centimeter

≥1.68

≥1.78

≥1.85

Resistivity

μΩ.m

≤14

≤14

≤13

Bending strength

MPa

≥25

≥40

≥45

Compressive strength

MPa

≥50

≥60

≥65

Ash

%

≤0.15

≤0.1

≤0.05

We accept small orders, please feel free to inquire.





Electrode Material Material Parameters

thing

unit

RP level

degree of protection

hp avant garde

SHP level

Ultra High Pressure

electrode
Resistivity≤

nipple

μΩM

8.5
7.5

7.5
7.0

6.5
6.0

6.0
5.5

5.5
4.5

electrode
Bending strength≥

nipple

MPa

9.8
13.0

10.0
13.0

10.0
14.0

10.0
16.0

11.0
16.0

electrode
Elastic modulus≤

nipple

GPa

9.3
14.0

12.0
14.0

12.0
16.0

14.0
18.0

14.0
18.0

electrode
Bulk density≥

nipple

g/cm

1.56
1.69

1.62
1.70

1.63
1.72

1.64
1.72

1.65
1.72

electrode
Coefficient of thermal expansion≤

nipple

100~600

2.9
2.8

2.7
2.5

2.2
2.0

2.2
1.6

1.5
1.4

Ash≤

%

0.5

0.3

0.3

0.3

0.3

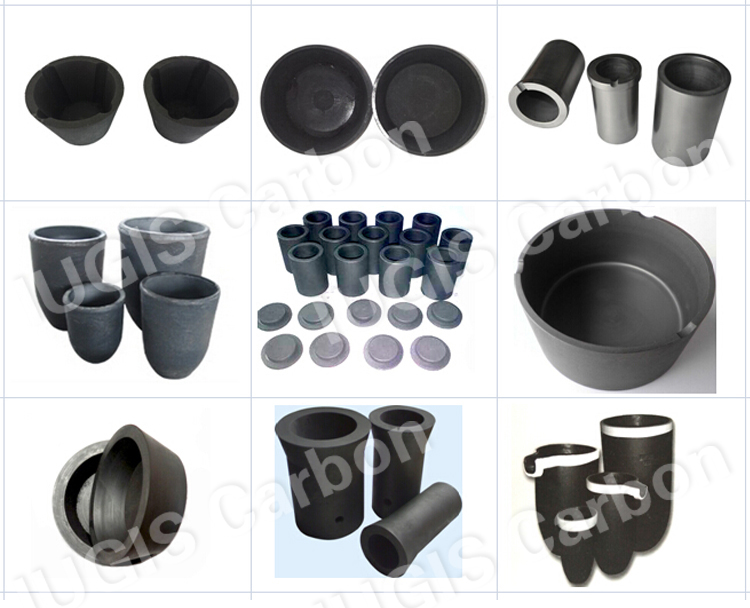

 More graphite crucibles for your reference

We support customization, please send us your drawings and material parameters!

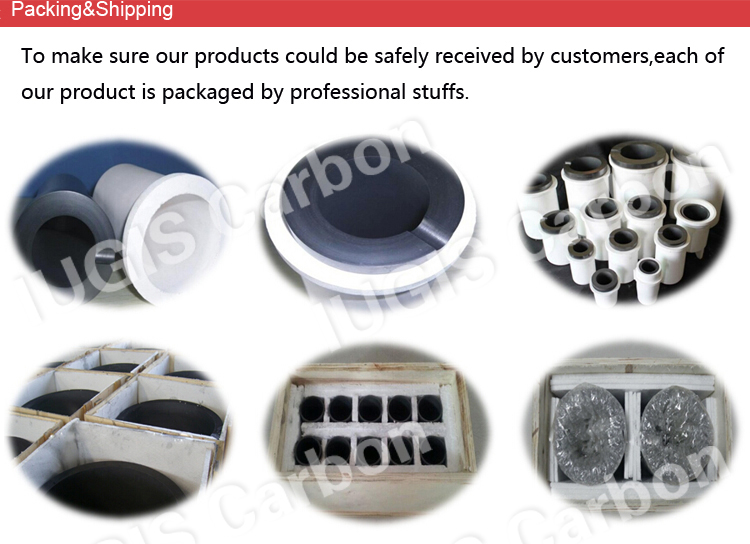

packaging and shipping
