High-power mixer oil field unit 75 barrels sand mixer cement well-killing oil equipment industrial mixer well-kil

Product Detail

port:Shanghaipayment terms:L/C, T/T
Packaging Details:by sea and railbrand:Petroch
Origin:Hubei, Chinamodel:HSC210
Supply capacity:5 sets per year
Product Description

Applications

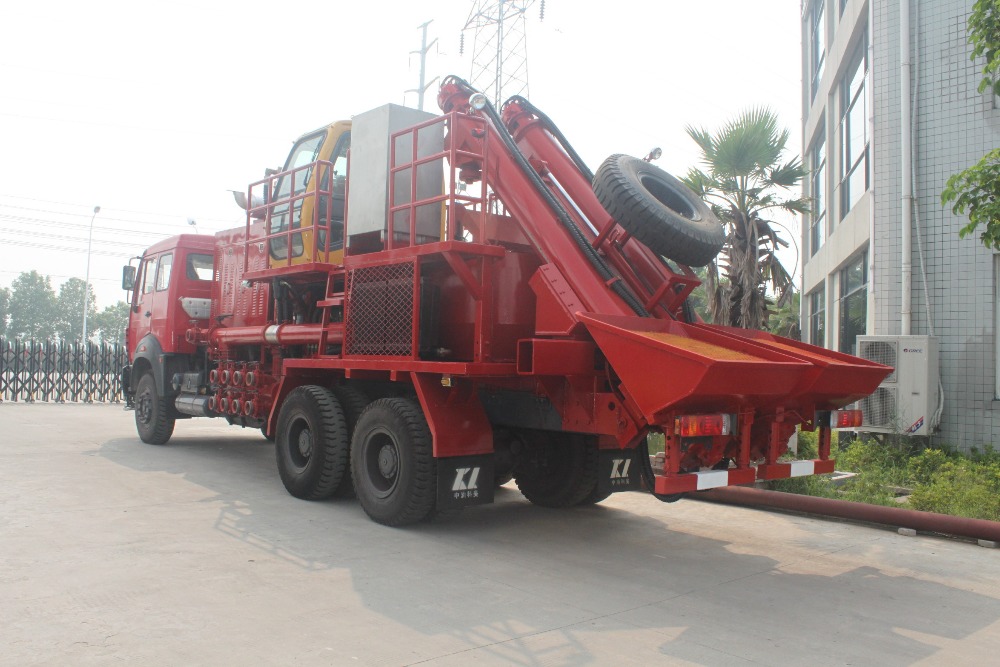

HS75 sand mixer is a widely used sand mixer with stable performance and strong sand mixing ability, which can provide enough sand fluid for multiple fracturing packages. It is driven entirely by hydraulic pressure. The four sets of oil pumps are powered by the deck engine through the transfer case, and then the hydraulic motors driven by the four oil pumps perform related work: including sand feeding, stirring, mixing, dry additive operation, suction and discharge pump operation.


1. It is a complete set of equipment for heavy fracturing operations. Full hydraulic drive. The power of the working parts comes from the deck and chassis engines, and the installed power can reach 500HP.

2. Large displacement: one mixer is enough for heavy fracturing operations.

3. Various automatic control systems such as liquid level control, concentration control, liquid additive control, dry additive control, and discharge control can be configured. Data acquisition, feedback and programmable control operations can all be easily implemented.

The main parameters
Model HS75
Maximum displacement of sand pump bbl(m3/min) (water) 75(12)
maximum. Working pressure psi(MPa) 70(0.5)
Maximum feeding capacity of sand feeder ppm(kg/min) 16440(7456)
Displacement of three-liquid additive system gpm(L/min) 10(37.8) 53(200) 90(340)
Dry additive system displacement gpm (L/min) 27 (102)
Stirring tank volume bbl(m3) 9.4(1.5)
Dimensions in.(mm) 419×99×166(10634×2500×4205)
Total weight lb(kg) 55115(25000)

main feature

1) The linear structure is simple, easy to install and maintain.

2) Pneumatic components, electrical components and operating components all adopt advanced world famous brand components.

3) High-pressure double cranks control mold opening and closing.

4) High degree of automation and intelligence, no pollution

5) Connect the pneumatic conveyor with a connector, which can be directly linked with the filling machine.

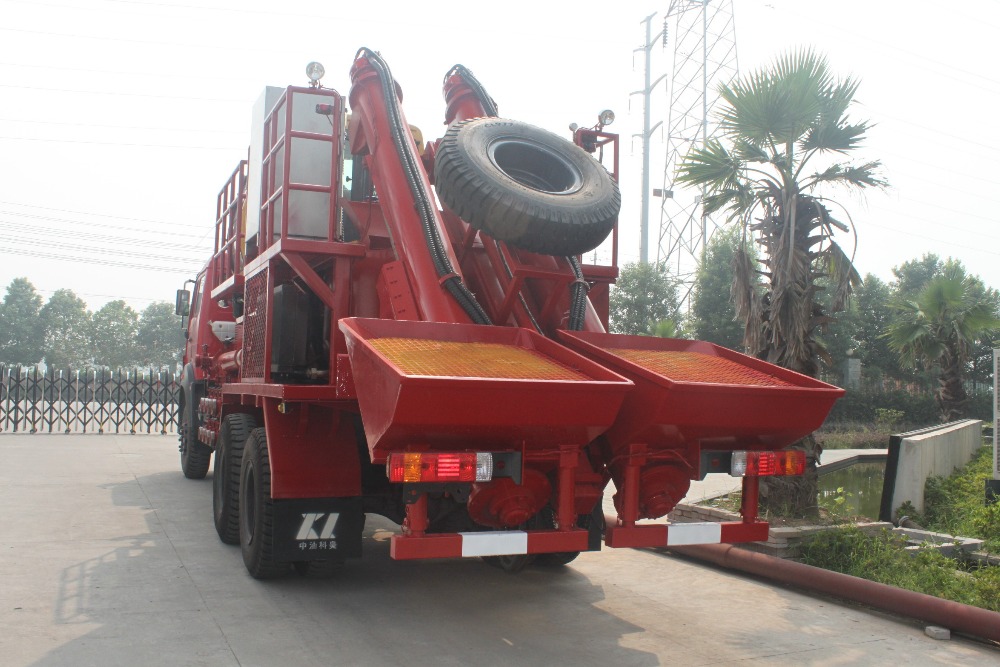

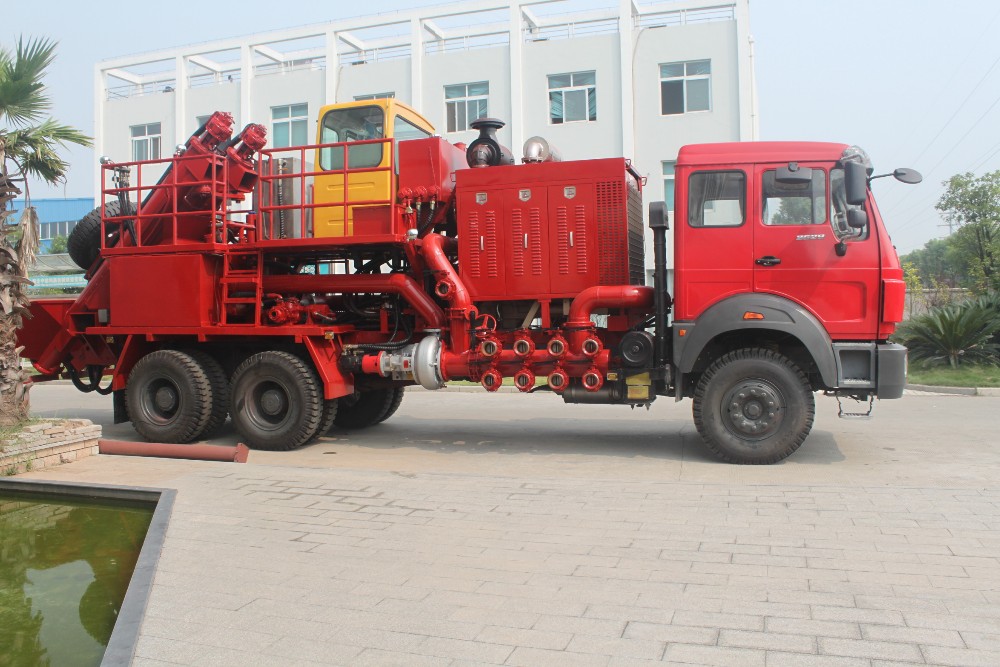

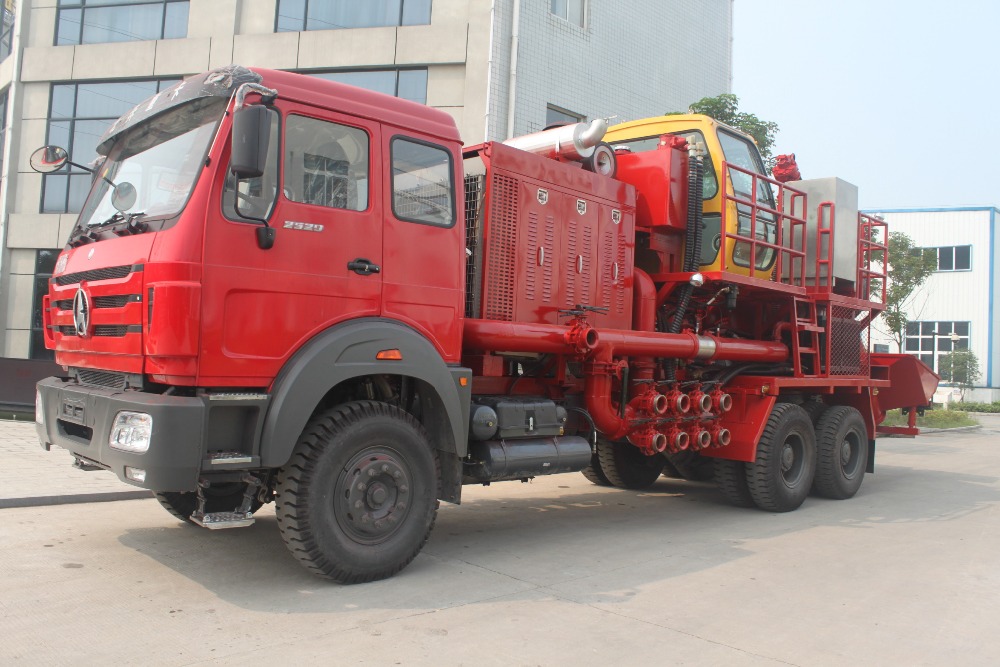

detailed image

Mechanical Parts

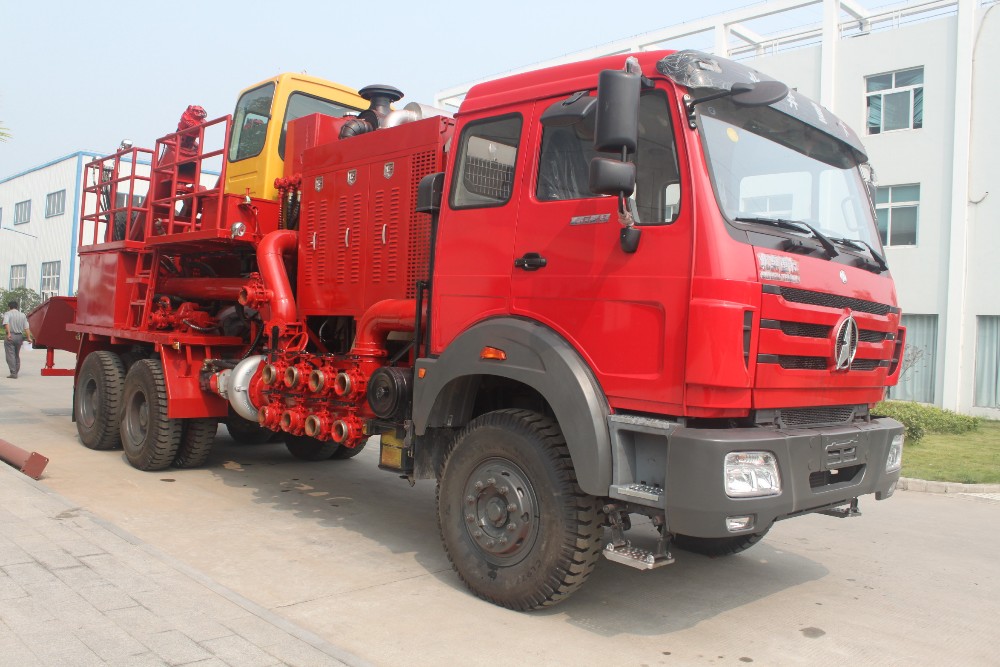

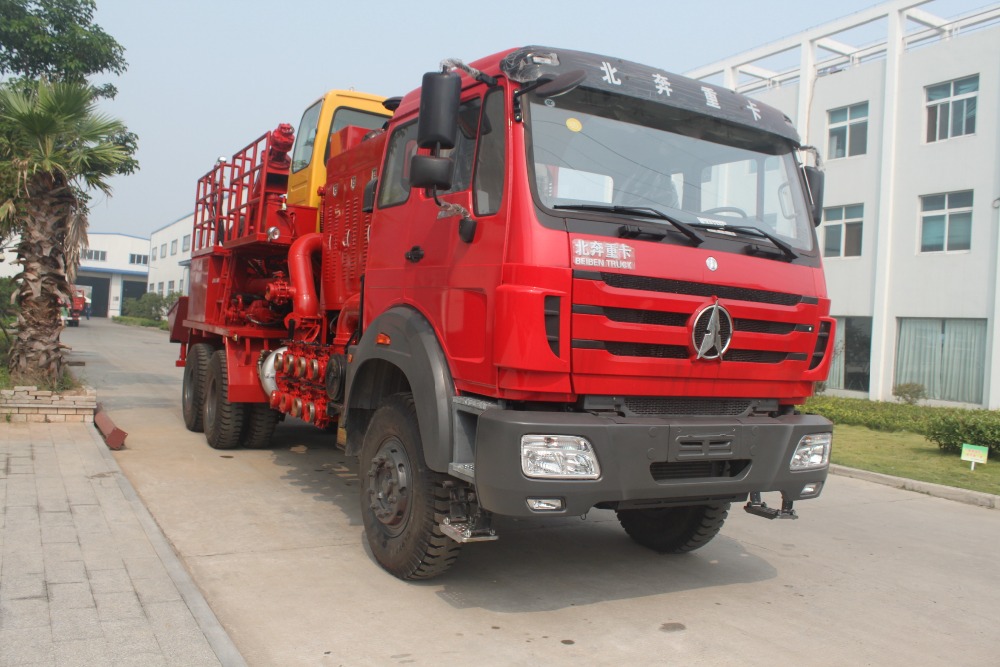

Name:chassis

brand:North Benz

The original:China

The domestic famous brand plunger has strong power, low fuel consumption and high economic benefit.

main feature

Name:3ZB-265 horizontal three cylinder plunger pump
brand:K H
The original:China
The hydraulic end of domestic famous brand has strong power, low fuel consumption and high economic benefits.

Mechanical Parts

Name:ACM-III automatic mixing system or digital display mixing system
brand:K H
The original:China
Domestic famous brand, strong power, low fuel consumption, high economic benefits.

our service

pre-sale service

* Inquiry and consultation support.

* Sample testing support.

* Check out our factory.

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers are available to service machinery overseas.

Packaging and Shipping
Package
size
123(L)*456(W)*789(D)
weight
1.2 tons



packaging details

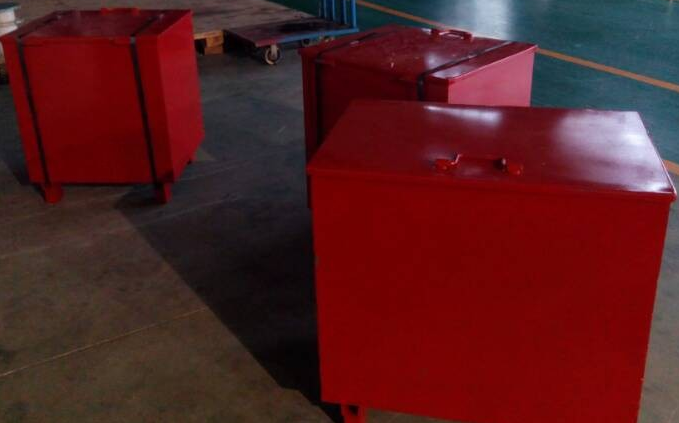

The normal packaging is iron box (size: L*W*H). If exported to European countries, wooden boxes will be fumigated. If the container is too tight, we will use PE film for packing or pack according to customer's special requirements.
certified
