LNG dispenser for liquefied natural gas lng dispenser

What is LNG?

LNG is liquefied natural gas, a clear, colorless, non-toxic liquid that is formed when natural gas is cooled to -162ºC (-260ºF). This reduces the volume of natural gas by a factor of 600, making it easier to store and transport to energy-poor towns and cities overseas

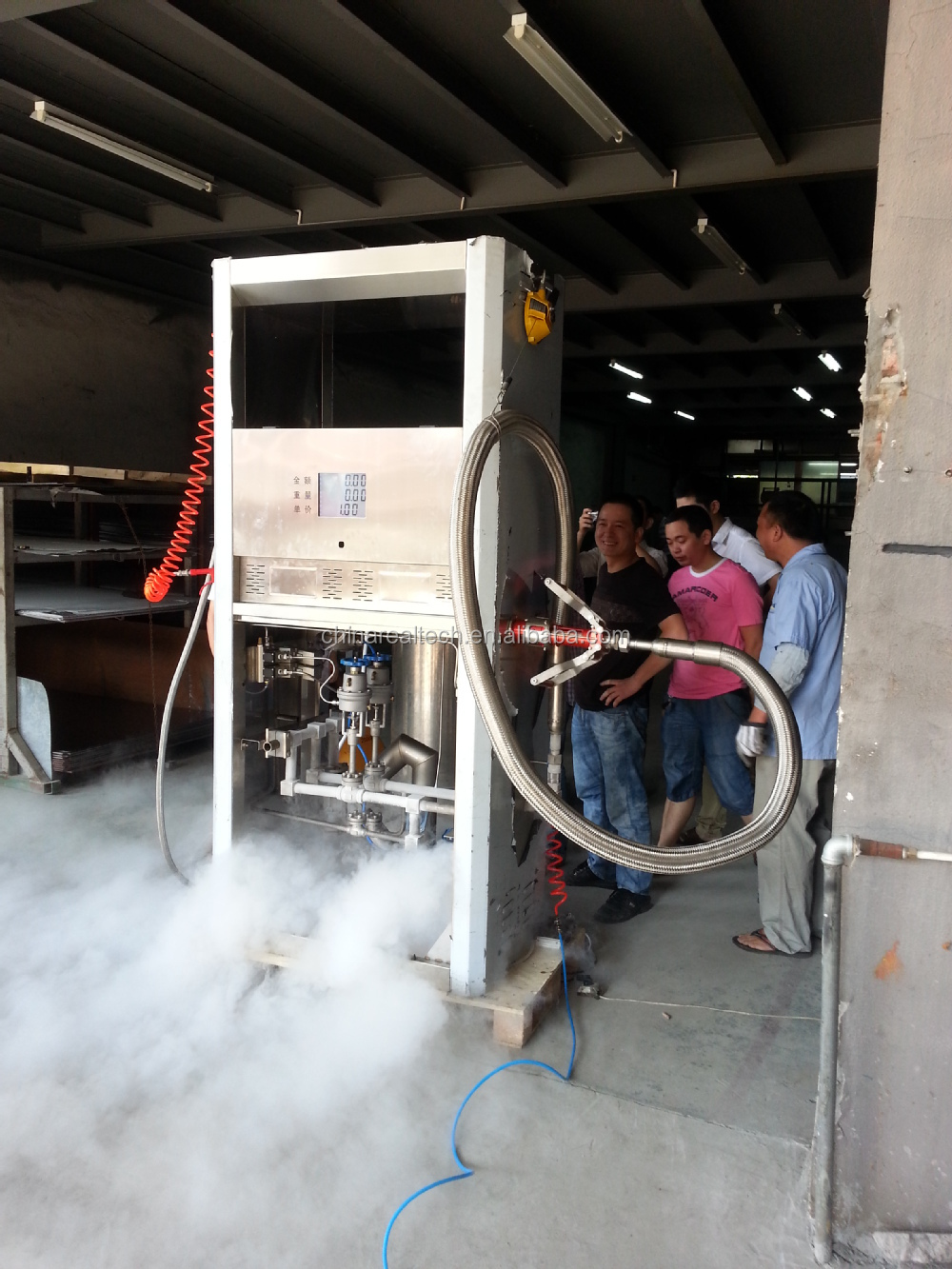

The LNG DISPENSER, RT-LNG112, is designed for filling LNG vehicles with LNG or biogas at filling stations.

Specification:
* Dimensions: 2200×1080×580mm

* Ambient temperature: -40oC~+55oC
* Humidity: ≤95%
* Maximum flow rate: 50kg/m

* Accuracy: ±0.10%
* Repeatability: ≤0.15%
* Working pressure: 20Mpa

* Maximum pressure: 25Mpa

* Power supply: AC110V±20%, AC220V±20%, AC380V±20% (50Hz)
* Noise: ≤70dB (Class A)
* Unit price range: 0~9999, 0~999999 (variable)
* Single range: 1~9999.99, 1~999999.99 (variable)
* Accumulation range: 0~9999999999.99
* Electronic calibration.
* Voice and printer (options).
* Refueling times limit function.
* Lockout pump function.
* Stop selling gas via round numbers.
* It can be set to display a decimal point, so it can be used in many countries with different exchange rates.
* There is a communication interface, which can communicate with the gas station management system.

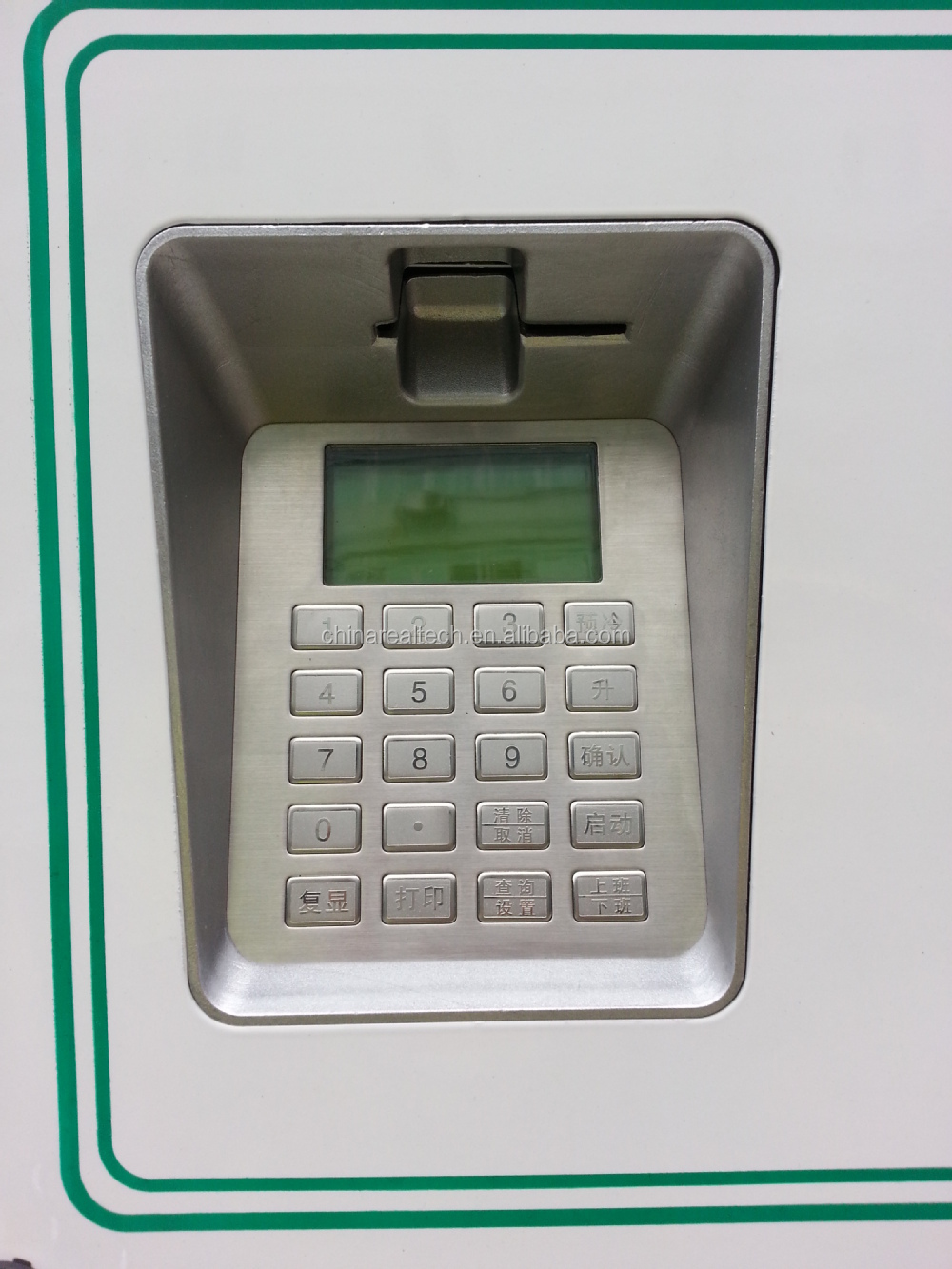

* Can communicate with IC card reader.

Allocator ID Meaning

• Application: LNG vehicle bunkering
• Applicable gas: liquefied natural gas or biogas
• LNG or LBG types: cold (3 bar) and saturated (6/8 bar) LNG
• maximum. Flow: 170 L/min / 45 GPM
• maximum. Working pressure: up to 20 bar / 290psi
• Weights and Measures Certification: MID (Europe)
• Power Requirements: 24VDC and 230VAC (for heater)

test program:

Each dispenser is electrically and mechanically pre-tested. On-site performance testing verifies that the process performance of the filling station is met.

quality
ISO 9001+ ISO 14001, ATEX (reference), IECEX,

feature

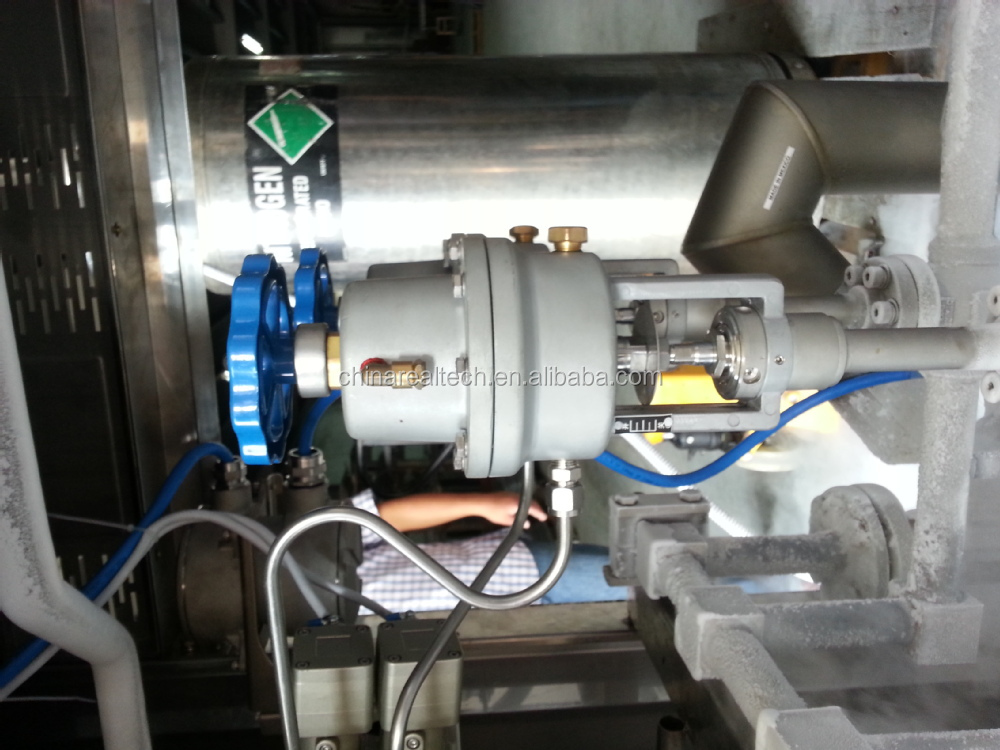

Possibility of high-precision measurement (99.5% trough Coriolis flowmeter) and gravimetric and metrological approval of the dispenser

Comes complete with refueling and venting hoses, nozzles and breakaway systems

Fully automatic vehicle vaporization gas recovery line ensures close to zero emissions to the atmosphere

Refueling is accomplished with a low flow signal or high pressure. Thus ensuring double safety against overfueling

Heated nozzle container ensures minimal icing when heavy use is required

High security level ensures easy and safe operation

• Safety valve collector redirected to station tank
• Ground the entire dispenser and vehicle fuel tank when refueling
• Explosion-proof equipment for zone 1/Division I enclosures
• Specially insulated hose to avoid cold burns to the operator
• Dispensers are designed to comply with the strictest safety regulations such as Atex, IECEx, NFPA or UL codes
• Integrated air gauge purge gun to clean nozzles prior to connection

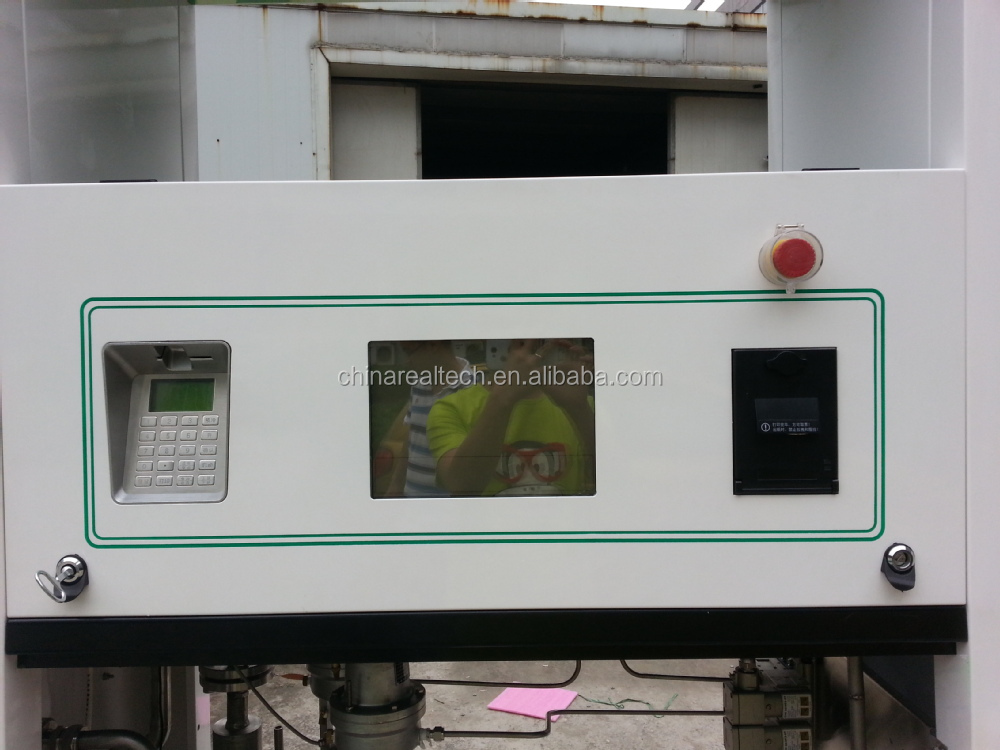

• Digital display of total price, total volume, price per kg
• The dispenser electronics are ready to be connected to the payment system. Provide different communication protocols
• Choice of cold and saturated fuel and single or dual hose operation
• Simple operation requires minimal user training
• Specific PLC technology allows remote maintenance and troubleshooting by Realtech support team

options

Weights and Measures Approved Dispensers (MID, NTEP On Demand, NMI)

• Single or double pipe distributor
• Cold Saturated Fuel Refueling Management
• heating container
• Different types of refueling nozzles available (Parker Kodiak, JC Carter, Macrotech)
• Distributors can be customized according to specific requirements
• IC card management system
• IFID card management system
• Bank card management system
