Pipeline Pig Traps Pig Receivers and Transmitters
- $5000.00 /set
- 1 set
- Shenyang Yongye Industry Co., Ltd.
- Liaoning, China
- Ms Jean Wang
Product Detail
| Packaging Details: | Shipping packaging; metal bracket; according to customer requirements | Ethane content (%): | 3.756 |
| size: | DN150-1600, 35Mpa | model: | year month day |
| Supply capacity: | 1000 sets per month | Material: | carbon steel/stainless steel |
| payment terms: | L/C, D/A, D/P, T/T, Western Union | Shipping Details: | Usually one month after receiving the advance payment |
| Certificate: | ASME "U" Stamp | type: | compressed natural gas |
| application: | Heating system | density: | 0.6 |
| Design Basis: | QOC-ASME VIII-1 Duct Barrel-ASME B31.3, B31.4 & B31.8 | Health status: | new |
| Butane content (%): | 0.289 | place of origin; place of origin: | Liaoning, China |
| Advantage: | Open within 1 minute, opening force within 200N | Calories (J): | 1132 |
| Applicable medium: | Petroleum gas | business type: | manufacturer |
| port: | Dalian, Shanghai, Ningbo port | Methane content (%): | 93.710 |
| color: | custom made | brand: | YY |
| Propane content (%): | 1.298 | After-sales service provided: | Overseas service center available |
Transmitter and receiver for sending and receiving pigs
during pigging operations.
v
product structure
•quick opening and closing
•barometer connection tube
•Safety valve connectionpipeline
•fluid outletpipeline
•Barrel
•Safety valve connectionpipeline
•variable diameterpipeline
•expandpipeline
•rear support
•Emissionspipeline
•front support
technical parameter
• Design pressure: technical up to PN35.0
• Test pressure: the hydraulic test pressure is 1.3-1.5 times the design pressure, and the airtight test pressure is
Same as design pressure.
• Permissible corrosion: 2mm-3mm or according to customer requirements
• Earthquake intensity: 8 degrees
• Applicable medium: crude oil, refined oil (gasoline, diesel), gas, water.
•Sizes range from 3 inches to 56 inches.
• 150 – 2500 scale rating.
• Materials – carbon steel, stainless steel, monel
• Pig annunciator option available.
•Safety quick release cover Iinterlock.
• Approved by third-party classification societies.
• Design codes include ASME VIII DIV. Me and ASME B31.3, B31.4, B31.8.
• Full material traceability available with certificate according to EN 10204 3.1 or 3.2.
• Applicable medium: crude oil, refined oil (gasoline, diesel), natural gas, coal gas, water.
h

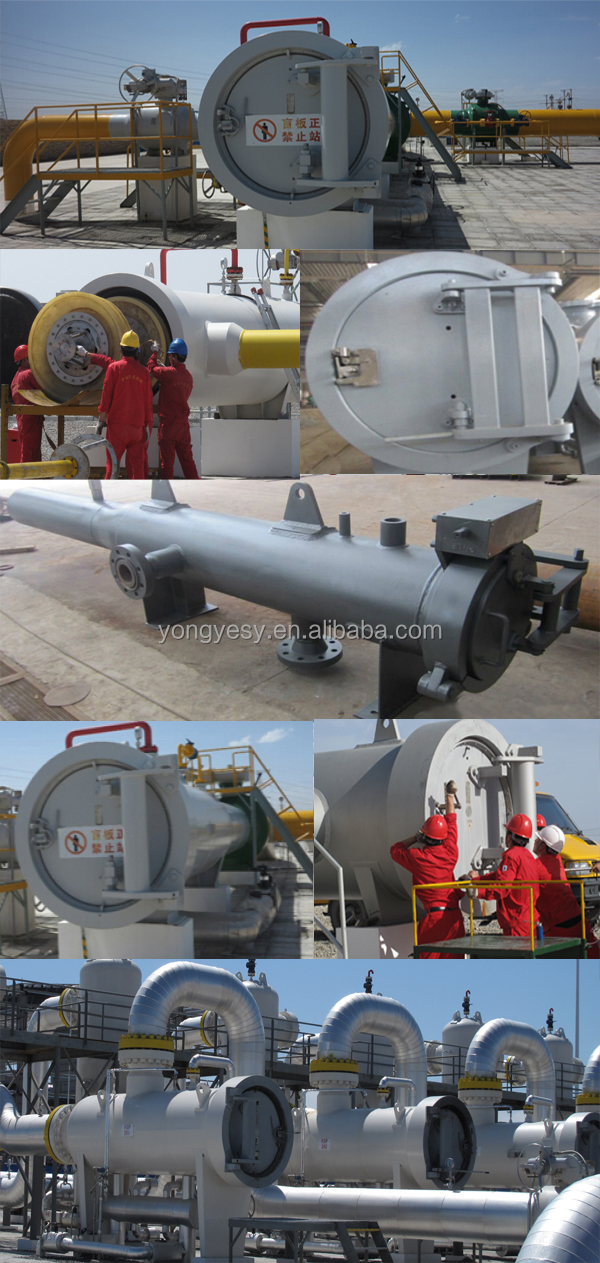

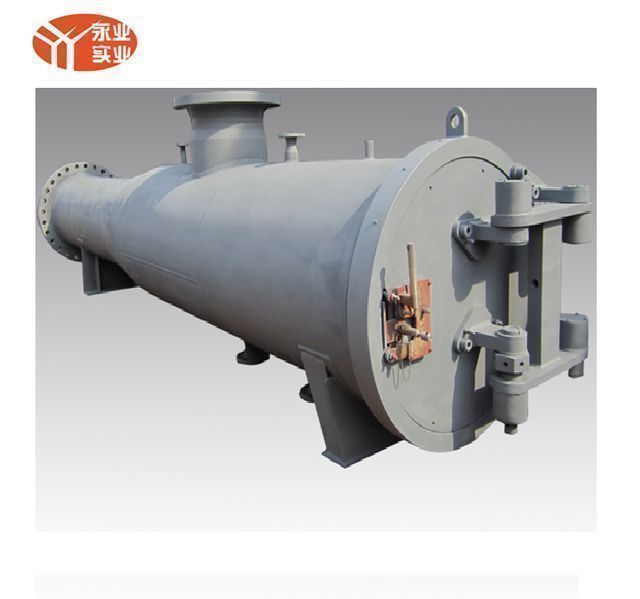

Product Image:

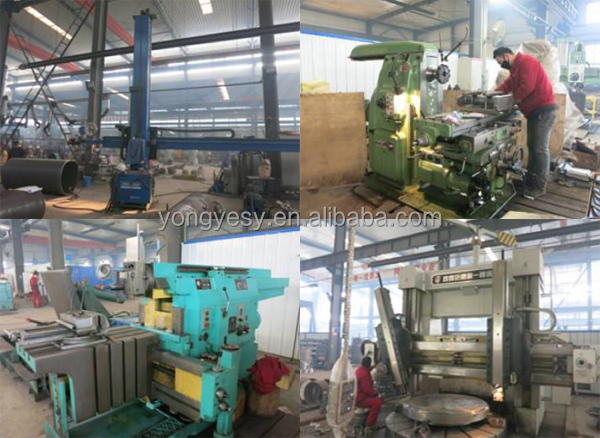

Manufacturing Equipment:
factory:
Bale:
market:
Certificate:
we promise:
We answer and solve your questions and inquiries within 24 hours.
We will arrive at the domestic job site within 48 hours of your request.
Provide on-site service for overseas work.
Service phone: +86-24-88266563
