high temperature ceramic fiber fabric

Product Detail

Place of origin:Taiwangrade:HA (high aluminum)
Packaging details:30 m per rollSupply capacity:5000 meters per month
application:Adiabaticpayment terms:wire transfer
Operating temperature:1350℃length:30 meters
width:100 cmport:Taichung Harbor

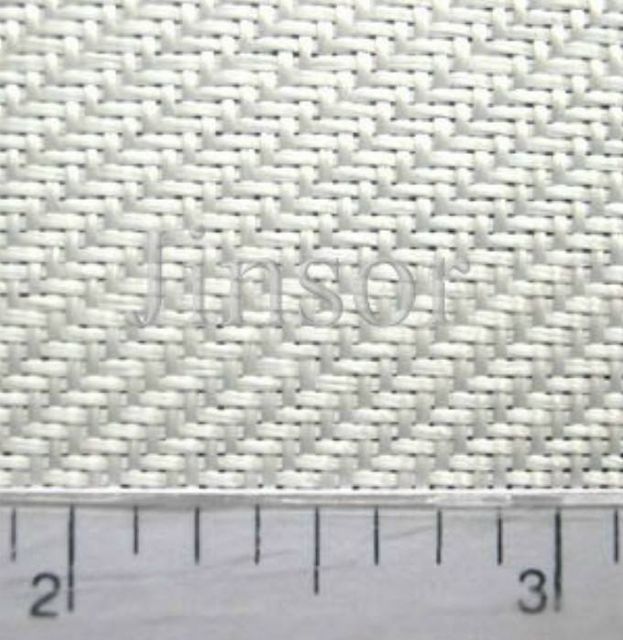

We can provide thin ceramic woven fabric resistant to 1350C

Width is 100cm, roll length is 30m..

If you are interested in our products, please write down your email address because Alibaba will not open your email address.
After getting your email address, we will send you samples and details.
Or you can search us "Jinsor-tech" from Yahoo or Google.

Thanks

Oliver Zhou





JINSOR high-strength ceramic cloth (1300℃ heat-resistant cloth)

code number
(picture)
knitting pattern thickness
(mm)
Width (cm) weight
(g/m²)
Count/inch fiber photo
per inch
through weft through weft
JSCC3025T twill fabric 0.35 100 Chapter 440 30 25 200tex filament 200tex filament
JSCC1111P clearly 0.68 100 500 11 11 600tex filament 600tex filament
JSCC0909P clearly 0.21 100 145 9 9 200tex filament 200tex filament
JSCC2626P clearly 0.21 100 280 26 26 133tex filament 133tex filament
JSCC2525P clearly 0.12 100 128 25 25 67tex filament 67tex filament
JSCC2220S satin 0.61 100 670 twenty two 20 400tex filament 400tex filament
JSCC2422S satin 1.4 100 Chapter 740 twenty four twenty two 400tex filament 400tex filament
JSCC4018D Double twill 0.8 100 940 40 18 400tex filament 400tex filament
JSCC0151P clearly 0.16 100 130 number 17 number 17 1.5k carbon fiber 67tex filament
JSCC0151T twill fabric 0.16 100 130 number 17 number 17 1.5k carbon fiber 67tex filament

The ceramic fiber is a continuous high-strength ceramic filament, not a short ceramic fiber.
The advantage of continuous ceramic wire is that it can withstand high temperatures for a longer time
And there is no problem of ceramic powder contamination. It is a long-life ceramic filament fabric.
This ceramic fiber fabric can be very thin and has good insulating properties.
application:
1. Heat-resistant cable
2. Heat-resistant pad
3. Engine heat resistance
4. Casting heat-resistant
5. Muffler insulation
6. The semiconductor chamber is heat-resistant
7. Fuel cells are heat resistant
