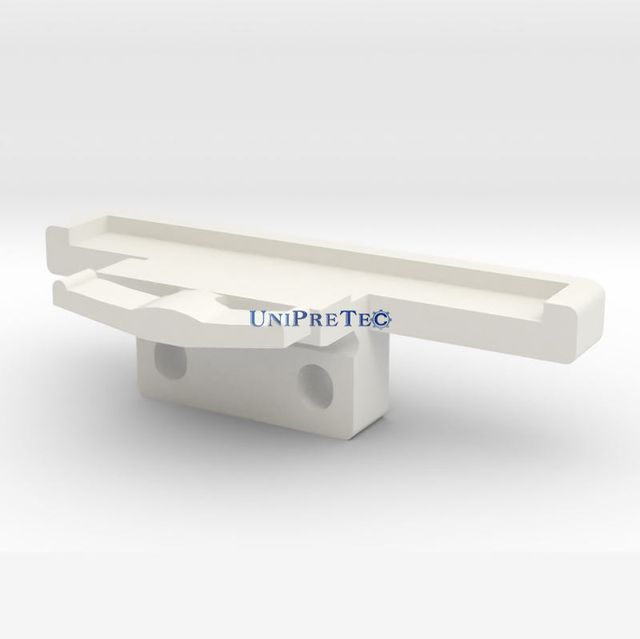

Solid hexagonal boron nitride ceramic

Product Detail

payment terms:L/C, Western Union, T/T, PaypalOrigin:Fujian Province, China
model:custom madeMaterial:boron nitride
port:XiamenSupply capacity:3000 pieces per month
application:Industrial Ceramicsbrand:not applicable
density:1.50 - 3.00 g/cm3Operating temperature:900 - 2,000 degrees Celsius
type:ceramic partsPackaging Details:Carton/wooden box
color:white, gray, dark grayProcessing services:to cut
Material Introduction
At UNIPRETEC, we produce several advanced ceramic parts using fine engineered ceramics, one of which is Hexagonal Boron Nitride. We usually choose a form called hexagonal boron nitride (h-BN). Hexagonal boron nitride is a composite material of boron and nitrogen that is heat and chemical resistant. It is the strongest boron nitride crystal type along with graphite. Since it has the same composition as graphite, you may even hear it referred to as "white graphite" because of its white color. Moreover, the hardness of hexagonal boron nitride is similar to that of graphite, so it is easy to machine the part into the desired shape, there is only a small tip, and the machining work should be carried out in dry conditions without coolant. In addition, visible dust is generated during processing, so masks and goggles need to be worn.

Boron nitride ceramics chemically have good thermal conductivity, low thermal expansion, and microwave transparency. Boron nitride can also be processed quickly. In addition, glass, salt, and other liquid metals are non-wetting. This ensures that none of the compounds get wet and are more resistant to chemical attack.

Hexagonal boron nitride (h-BN) performs extremely well at high heat, being effective in air up to 900 degrees Celsius, in vacuum at 1,900 degrees Celsius, and in an inert environment at 2,000 degrees Celsius. BN is self-lubricating and therefore does not require the use of gas or water molecules stuck in its layers. Because of this, boron nitride (BN) works perfectly in the vacuum that is important for aerospace applications.
Features
excellent electrical insulator
maximum. Operating temperature 2000 °C
High thermal shock resistance
low coefficient of thermal expansion
Low wettability of molten metal
easy to machine
Application field
Amorphous Alloy Strip Production
Metal powder gas atomization
Melting crucibles and linings
Vacuum Furnace Accessories
aerospace
Sinter Trays and Mounters
Material properties
thing
unit
BN-2000
BN-2300
BN-2800
BN-3000
main content
-
BN>99%
Boron Nitride + Aluminum Oxide
Boron Nitride + Aluminum Nitride
Boron Nitride + Zirconia
color
-
white
light grey
dark gray
dark gray
density
g/cm3
1.95-2.00
2.25-2.35
2.75-2.85
2.90-3.00
Bending strength
MPa
30
65
85
90
Compressive strength
MPa
55
145
205
220
Resistivity
Ω·cm
>1014
>1013
>1013
>1012
maximum. Operating temperature. (Air)

900
1,000
1,000
1,000
maximum. Operating temperature. (vacuum)

1,900 people
1,750
1,800
1,750
maximum. Operating temperature. (inert)

2,000
1,750
1,800
1,750
Thermal Conductivity
W/Mick
35
30
85
30
Coefficient of Thermal Expansion (25 - 1,000°C)
10-6/K
1.5
2
2.8
3.5
Δ The above data is for reference and comparison only, and the specific data will vary due to the manufacturing method and part configuration.
examine
about Us
UNIPRETEC is a representative technical ceramics company in China. Relying on a technical team with more than 10 years of experience and the cooperation of well-known domestic universities and institutions, the company covers the manufacture and sales of oxide, nitride and carbide ceramic products. Based on research on the advanced ceramic industry, our company is good at flexibly providing suitable products and suggestions according to customers' applications and needs. Over the years, our company has been committed to meeting the needs of customers all over the world. Many praises from customers and partners have always inspired UNIPRETEC to keep moving forward and developing.
"Transform simple things into very complex phenomena, and you can discover new fields; read complex phenomena very simply, and you can discover new laws." - - - - - -Isaac Newton
