Breathable PTFE conveyor belt

Product Detail

Grid size:4*4Supply capacity:14400 square meters per month UV dryer PTFE coated fiberglass mesh conveyor belt for textile
Origin:Jiangsu, ChinaAfter-sales service provided:Does not provide overseas services
Braid Type:plain weaveYarn type:Alkali free glass
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramnet:4*4 network
weight:570 g/m²model:6008
brand:Wakewidth:Maximum width 4m
Packaging Details:Carton, pallet PTFE conveyor belt, strong air permeabilityapplication:Textile, heat insulation material conveyor belt
Standing temperature:-70~260℃Processing services:unwind, cut
Alkali content:Alkali-freeport:Shanghai
color:BrownUnited:Bullet, Screw and Disc Fittings
product name:Breathable PTFE conveyor beltbrand:Vic
product description

Breathable PTFE conveyor belt

thing color

fabric weight

(grams/square meter)±3%

gross weight

(grams/square meter) ±5%

tensile strength

(N/5cm)±5%

Mesh size(mm) Yarn count
through weft
6001 light brown Chapter 367 Chapter 440 1800 1650 1*1 single weft single warp
6001B Black Chapter 367 Chapter 440 1650 1330 1*1 single weft single warp
6003 Black Chapter 343 Chapter 480 1350 1700 4*4 Single weft and double warp
6004 light brown Chapter 343 Chapter 475 1350 1700 4*4 Single weft and double warp
6007K yellow, double weft aramid Chapter 417 Chapter 570 3200 2300 4*4 Double weft and double warp
6008 Brown Chapter 414 Chapter 570 1800 3000 4*4 Double weft and double warp
6012 Black Chapter 414 Chapter 570 1800 3000 4*4 Double weft and double warp
6010K yellow, aramid Chapter 247 410 3300 2050 4*4 Single weft and double warp
6013 light brown 306 Chapter 430 1400 1000 10*10 Double weft and double warp
6014 light brown 307 Chapter 440 1500 1100   single weft single warp
6015 light brown Chapter 416 520 2000 1450 2*2.5 Single weft and double warp
6016 brown, for joints Chapter 417 615 3000 2000   Double weft and double warp
6018 light brown Chapter 490 Chapter 735 2000 4000 4*4 Double weft and double warp
6019 light brown Chapter 465 690 1800 3500 4*4 Double weft and double warp
6032 milky Chapter 420 710 2500 3000 4*4 double weft
triple twist

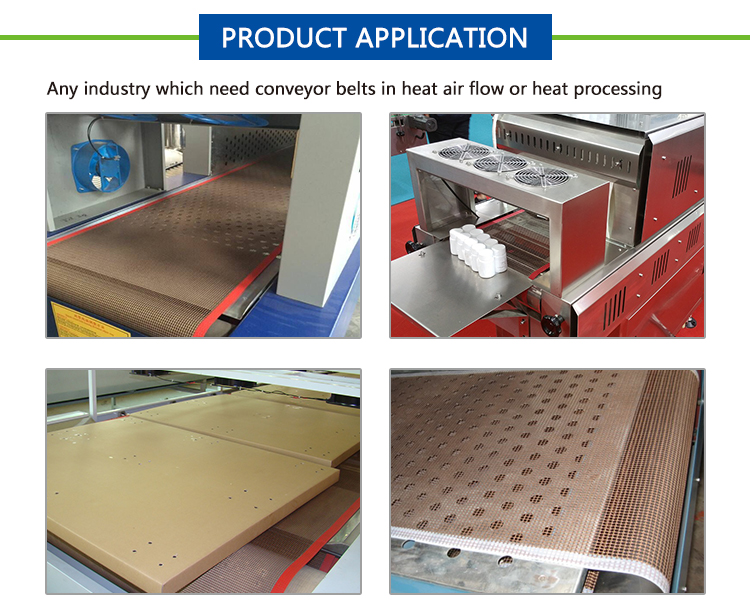

Applications



Packaging and Shipping
