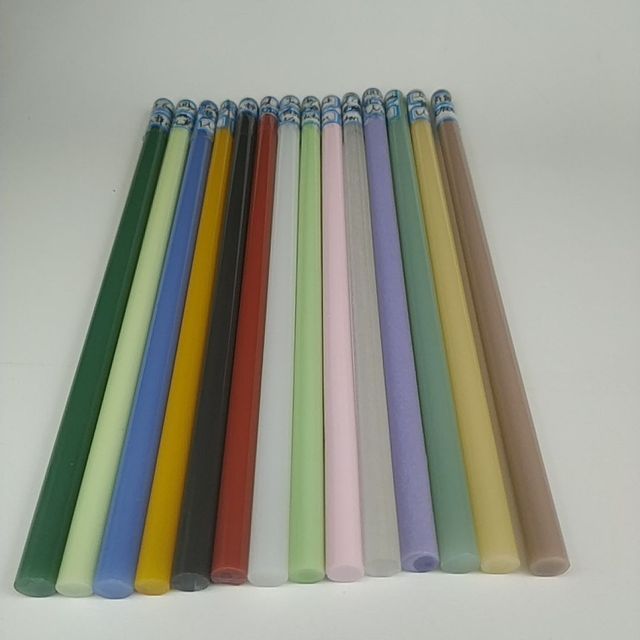

Winton factory custom color high quality borosilicate glass rods

Product Detail

shape:Customer formsample:supply
application:decorative glasscolor:color
type:insulating glassPackage:Standard carton packaging
Supply capacity:10000 pieces per monthproduct name:winton glass rod
Material:borosilicatestandard:international class
thickness:customOrigin:Shandong Province, China
payment terms:Delivery of documents, delivery of documents, telegraphic transferwork:tempered glass
feature:High temperature and high pressureusage:tank
size:customport:Qingdao, China
brand:WintonOperating temperature:550°C
Packaging Details:Bubble paper, packed in carton or according to customer requirements.Package preview:
model:custom
Product Description
The characteristics of the glass rod are as follows:
1. Productivity: 60T/day.
2. Outer diameter: 3mm to 350mm.
3. Length: 5mm to 2200mm. Normal length: 1000mm-1800mm.
4. Color: colorful
5. High purity >99.98%
6. We can provide special size upon request.
7. MOQ for normal glass tube: 1T.
Special glass tube MOQ: 3T.
Eight, the main chemical composition:
1) Silicon dioxide: 80±0.5%
2) B2O3: 13±0.2%
3) Al2O3: 2.4±0.2%
4) Na2O (+K2O): 4.3±0.2%

detailed drawing
 Quartz Pyrex Rod Made in China
No.
physical performance
value
unit
1
Medium linear expansion coefficient a20/300 complies with. According to DIN 52328
3.3±0.1
10-6 K-1
2
transition temperature
525±15
Celsius
3
Annealing temperature upper limit
560±10
Celsius
4
Softening Point
820±10
Celsius
5
Operating temperature
1260±20
Celsius
6
Maximum short-term working temperature
500
Celsius
7
Density ρ at 20°C
2.23±0.02
g/cubic centimeter
8
Elastic modulus E
64
10
9
Poisson's ratio μ
0.20
1
10
Thermal conductivity λw(20℃-100℃)
1.2
W/m2
11
The temperature when the resistivity is 108Ω·cm (DIN52326) tk 100
250
Celsius
12
Stress-optical constant (DIN52314)K
4.0
10-6mm2/N
