Hot Pressed PTFE Film PTFE Fabric PTFE Sheet

  • $0.60 / 1 - 9 square meters
    $0.50 / 10 - 99 square meters
    $0.40 / 100 - 999 square meters
    $0.30 / >=1000 square meters
  • 1 square meter
  • Taixing Chuanda Plastics Co., Ltd
  • Jiangsu, China
  • Ms Marcial Zhang

Product Detail

Alkali content:Alkali-freeTemperature resistance:-80-260℃
Certification:,LFGB,REACHBraid Type:plain weave
thickness:0.08mm-1mmbrand:Chuanda fiberglass cloth
width:1250mm, 1500mm, can be customizedcolor:black, beige, light brown, silver
Standing temperature:-70℃~260℃sample:Free Samples Free Shipping
weight:158GSM - 1740GSMapplication:Blind
port:Shanghaipayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
Yarn type:Alkali free glassPackaging Details:Bubble film + standard export CTN packaging glass fiber cloth
Origin:Jiangsu, ChinaGood features:Non-stick, heat-resistant, waterproof, fireproof
model:7628Key words:Fiberglass Cloth
Supply capacity:100000000000000 square meters of PTFE sheet for hot press per monthRoll length:custom made
Material:PTFE coated fiberglass clothSurface treatment:PTFE coating
Name:Hot Pressed PTFE Film PTFE Fabric PTFE Sheet



Product Description

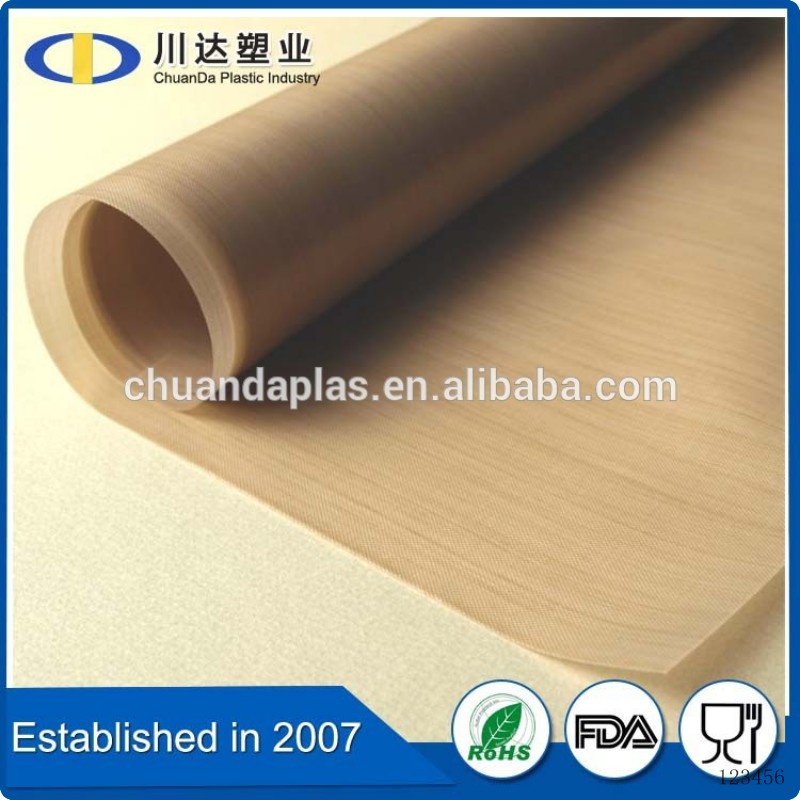

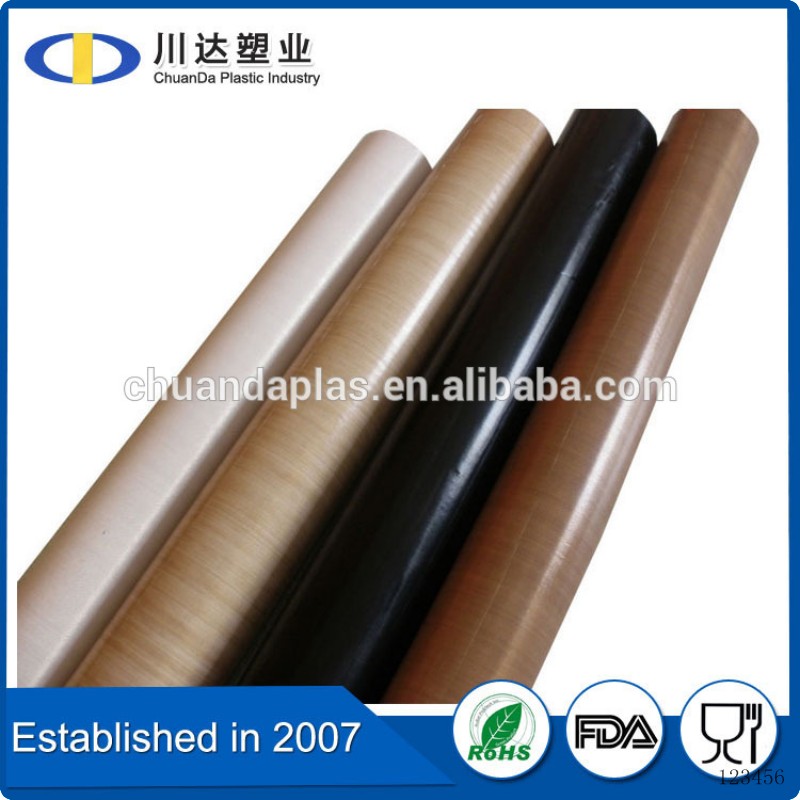

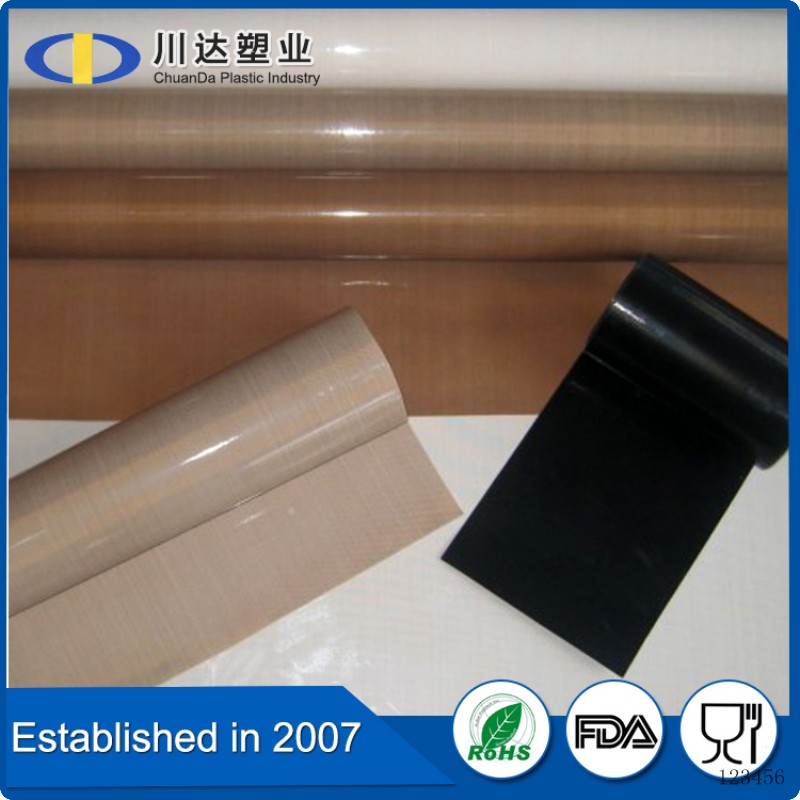

PTFE coated fiberglass clothHigh-quality imported glass fiber is used as the weaving material, which is flat-woven or specially woven into high-quality glass fiber base cloth, coated with high-quality PTFE resin, and made into various PTFE high-temperature-resistant cloths of different thicknesses and widths.



PTFE coated fiberglass cloth features:



1. Good temperature resistance, 24 hours working temperature -140 to 360 degrees Celsius.



2. Non-stick, easy to remove the adhesive on the surface.



3. Good chemical resistance: almost resistant to most chemicals, acids, alkalis, and salts; low fire resistance and aging.



4. Low friction coefficient and dielectric constant, good insulation ability.



5. Dimensional stability, high strength, elongation coefficient less than 5‰



Features of PTFE coated glass fiber cloth



1. Dimensional stability, high strength, elongation coefficient less than 5%.



2. Good temperature resistance, 24 hours working temperature -60℃~300℃.



3. Low friction coefficient and dielectric constant, good insulation ability.



4. Non-stick, easy to remove surface stains and adhesives.



5. Good chemical resistance, able to withstand most chemicals, acids, alkalis, salts, fireproof and anti-aging.







Application of PTFE/PTFE coated glass fiber cloth



1. Used as a variety of high temperature resistant liners, such as microwave oven liners, and other liners.



2. Used as non-stick liner and intermediate.



3. Used as various conveyor belts, adhesive belts, sealing belts and occasions that require high temperature resistance, non-stick, chemical resistance and other properties.



4. Covering or wrapping materials in the petroleum and chemical industries, wrapping materials, insulating materials, high temperature resistant materials, desulfurization materials in power plants, etc. in the electrical industry.





Specifications of PTFE coated glass fiber cloth





part
number

Overall Thickness (inches)

Coating weight
(lb/yd2)

tensile strength
twist/fill
(lb/inch)

tear strength
twist/fill
(pound)

Maximum width(mm)

premium

9039

0.0029

0.27

95/55

1.5/0.9

3200

9012

0.0049

0.49

150/130

2.5/2.0

1250

9015

0.006

0.6

150/115

2.1/1.8

1250

9025

0.0099

1.01

325/235

7.5/4.0

2800

9028AP

0.011

1.08

320/230

5.4/3.6

2800

9045

0.0148

1.45

350/210

5.6/5.1

3200

standard grade

9007AJ

0.0028

0.25

90/50

1.7/0.9

1250

9010AJ

0.004

0.37

140/65

2.6/0.7

1250

9011AJ

0.0046

0.46

145/125

3.0/2.2

1250

9014

0.0055

0.54

150/140

2.0/1.5

1250

9023AJ

0.0092

0.94

250/155

4.9/3.0

2800

9035

0.0139

1.36

440/250

7.0/6.0

3200

9065

0.0259

1.76

420/510

15.0/8.0

4000

mechanical grade

9007A

0.0026

0.2

80/65

2.3/1.0

1250

9010A

0.004

0.37

145/135

2.3/1.6

1250

9021

0.0083

0.8

275/190

8.0/3.0

1250

9030

0.0119

1.14

375/315

7.0/6.0

2800

economy class

9007

0.0026

0.17

70/60

2.9/0.8

1250

9010

0.004

0.36

135/115

3.0/2.7

1250

9023

0.0092

0.72

225/190

4.4/3.2

2800

9018

0.0074

0.7

270/200

8.0/4.0

1250

9028

0.0112

0.98

350/300

15.0/11.0

3200

9056

0.0222

1.34

320/250

50.0/40.0

4000

9090

0.0357

2.04

540/320

10.8/23.0

4000

Porous bleeders and filters

9006

0.0025

0.12

40/30

5.3/4.0

1250

9034

0.0135

0.77

175/155

21.0/12.0

3200

Wrinkle and tear resistance

9008

0.0032

0.31

90/50

1.6/0.5

1250

9011

0.0046

0.46

125/130

4.1/3.7

1250

9014

0.0056

0.52

160/130

5.0/3.0

1250

9066

0.0261

1.8

450/430

50.0/90.0

4000

TAC-BLACK™ (antistatic)

9013

0.0048

0.45

170/140

2.2/1.8

1250

9014

0.0057

0.55

150/120

1.7/1.4

1250

9024

0.0095

0.92

230/190

4.0/3.0

2800

9024AS

0.0095

0.92

230/190

4.0/3.0

2800

9037AS

0.0146

1.39

405/270

8.5/7.2

3500
