Graphite mold for continuous casting/Graphite mold for crystallizer

Product Detail

aspect:according to drawingsPorosity:<15%
Material:High purity graphiteport:Ningbo/Shanghai/Tianjin
Revolt:8-10 ohmsCarbon content:99.99%
application:castingOrigin:Zhejiang, China
payment terms:L/C, Western Union, T/T, MoneyGramShore hardness:55 HSD
model:Graphite crystallizerbrand:veterinary
Package preview:Compressive strength:65MPa-85MPa, 65MPa-85MPa
Supply capacity:5000 pieces per monthPackaging Details:Wooden box or according to customer's requirement
Bending strength:48MPatechnology:mold forming
Ash content:<0.1%Bulk density:≥1.88g/cubic centimeter
Bulk density (g/cm3):≥1.88g/cm3Porosity(%):15%
Resistance (μΩ.m):8-10 ohms

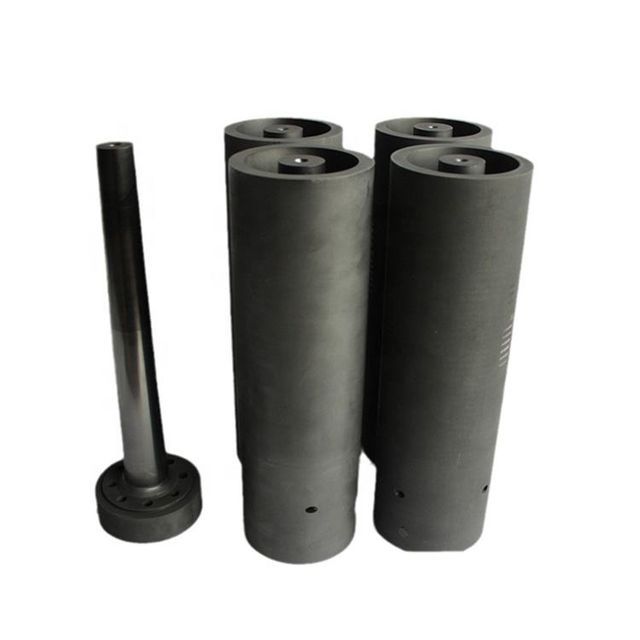

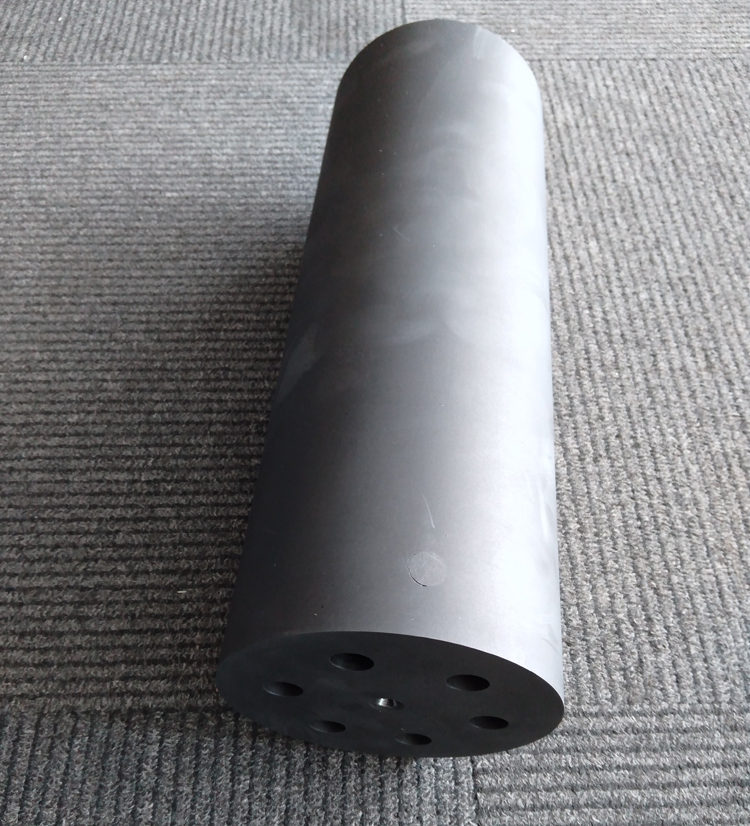

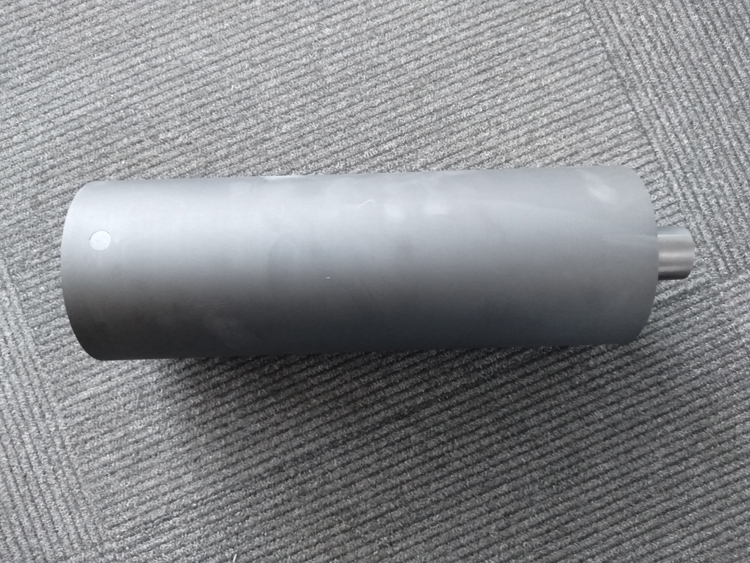

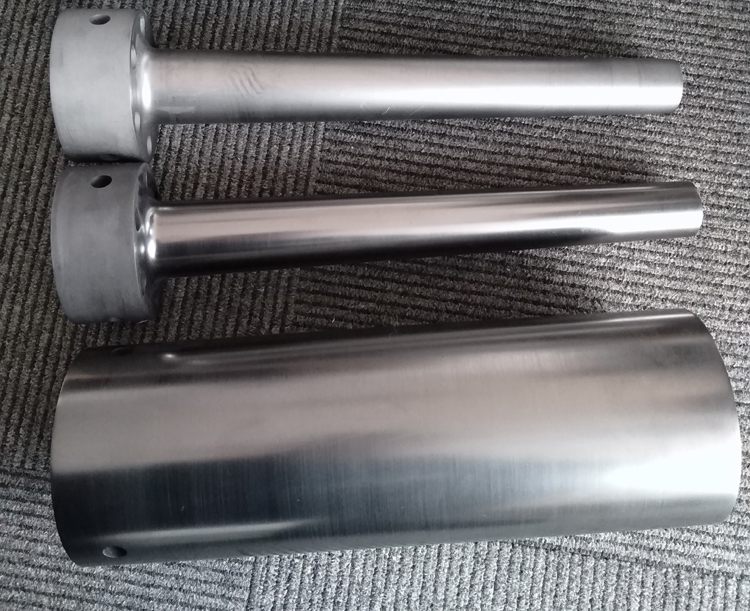

We process continuous casting molds from high-purity graphite materials for the production of:
1. Brass continuous casting mold
2. Copper continuous casting mold
3. Gold, silver, platinum and other jewelry continuous casting molds.
4. Steel and stainless steel continuous casting molds.

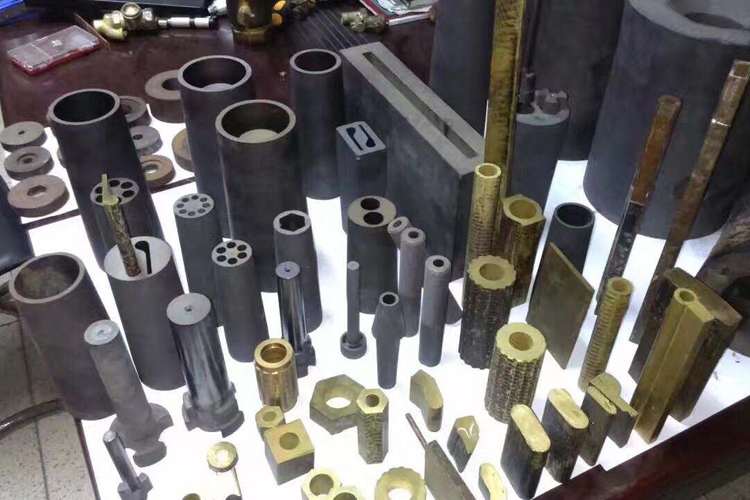

According to the casting shape, it is divided into round rod type, hollow tube type and special-shaped type.



Graphite material grade

material name

model

Bulk density

specific

resist

curved

strength

Compressive strength

Ashmax

particle size

processing

g/cubic centimeter

μΩm

MPa

MPa

%

maximum



Electrode graphite

VT-RP

≥1.55~1.75

7.5~8.5

≥8.5

≥20

≤0.3

≤8~10mm

dipping optional





vibrating graphite

VTZ2-3

≥1.72

7~9

≥13.5

≥35

≤0.3

≤0.8 mm

secondary impregnation

three bake

VTZ1-2

≥1.62

7~9

≥9

≥22

≤0.3

≤2 mm

one dip

double bake

extruded graphite



VTJ1-2

≥1.68

7.5~8.5

≥19

≥38

≤0.3

≤0.2mm

one dip

double bake

Molded graphite

VTM2-3

≥1.80

10~13

≥40

≥60

≤0.1

≤0.043mm

secondary impregnation

three bake

VTM3-4

≥1.85

10~13

≥47

≥75

≤0.05

≤0.043 mm

Triple Dip

Four baking

Isostatic graphite

VTD2-3

≥1.82

11~13

≥38

≥85

≤0.1

2μm, 6μm, 8μm, 15μm, etc...

secondary impregnation

three bake

VTD3-4

≥1.88

11~13

≥60

≥100

≤0.05

≤0.015 mm

Triple Dip

Four baking







Ningbo Weitai Energy Technology Co., Ltd.It is a high-tech enterprise focusing on production and sales

Graphite products and automotive products. Our main products include: graphite electrodes, graphite

Crucible, graphite mold, graphite plate, graphite rod, high-purity graphite, isostatic graphite, etc.


We have advanced graphite processing equipment and exquisite production technology, with graphite CNC

Machining centers, CNC milling machines, CNC lathes, large sawing machines, surface grinders, etc. us

Various difficult graphite products can be processed according to customer requirements.

Imported graphite materials of various specifications are used to supply domestic and foreign customers

With excellent quality and competitive price.


In line with the enterprise spirit of "integrity-based, innovation-driven, quality-oriented"

Guarantee", adhering to the corporate purpose of "solving problems for customers and creating future for customers"

Employees", with the mission of "promoting the development of low-carbon and energy-saving businesses"

Mission, we strive to build a first-class brand in the industry.

1. When can I get the price?
We usually quote within 24 hours after we get your detailed requirements, such as size,
Quantity etc.
If it is an urgent order, you can call us directly.

2. Do you provide samples?
Yes, samples are available for you to check our quality.
Sample delivery time is about 3-10 days.

3. What about the lead time for mass products?
The delivery time is based on quantity, about 7-12 days. For graphite products, apply
A dual-use item permit takes approximately 15-20 working days.

4. What is your terms of delivery?
We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way.
Besides, we can also ship by air and express.
