0.017mm-0.07mm graphite smartphone thermal pads
- $15.00 /square meter
- 1 square meter
- Shenzhen Zhenzhixing Technology Co., Ltd.
- Guangdong, China
- Ms Star Guo
Product Detail
| Packaging Details: | Sales unit: Single piece Package size: 11X68X100 cm Gross weight per piece: 1.500 kg Package type: 1: 200m/roll 2: 2 rolls/carton 3: Carton size: 32x24x24cm | Material: | Graphite flakes |
| Continuous temperature resistance: | 400 | Conductivity: | 2.0*10(6) sec/m |
| Thermal conductivity 2 (horizontal): | 15 | Supply capacity: | 500000 pieces per month |
| payment terms: | Western Union, L/C, D/P, D/A, T/T, MoneyGram, paypal | grade: | industrial grade |
| Package preview: | brand: | Zheng Zhongxing | |
| application: | smartphone, laptop | model: | ZZGS-17/25/40/70 |
| type: | soft board | Origin: | Guangdong, China |
| thickness: | 0.025 | color: | Black |
| C content (%): | 99.99% | density: | 2.1 g/cm3 |
| Bending test (times) (R5/180 C): | >10000 | Thermal conductivity1 (vertical): | 800-1700 |
| product name: | 0.017mm-0.07mm graphite thermal pad smartphone thermal pad |

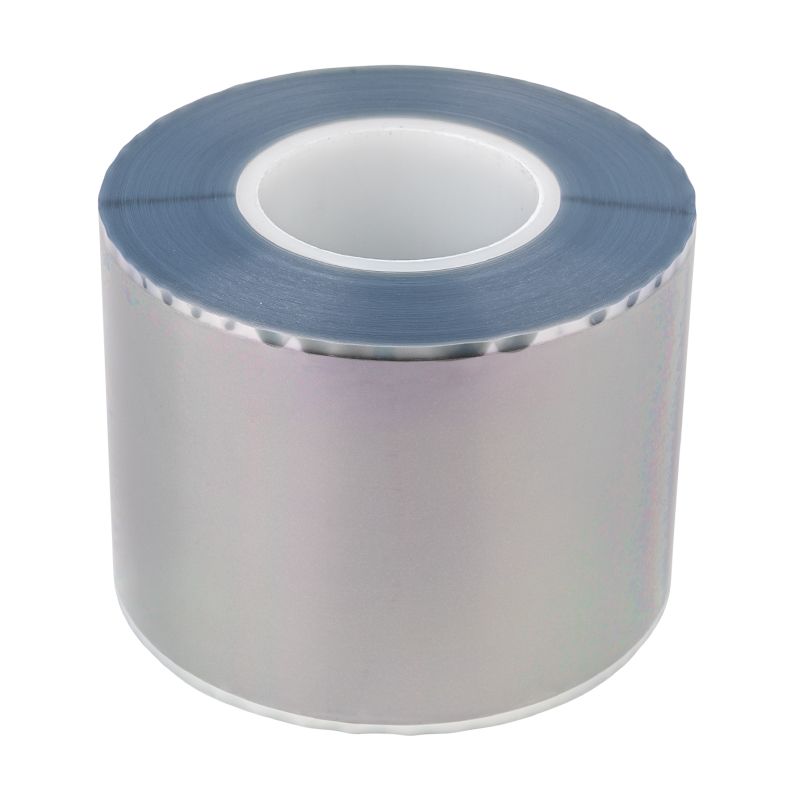

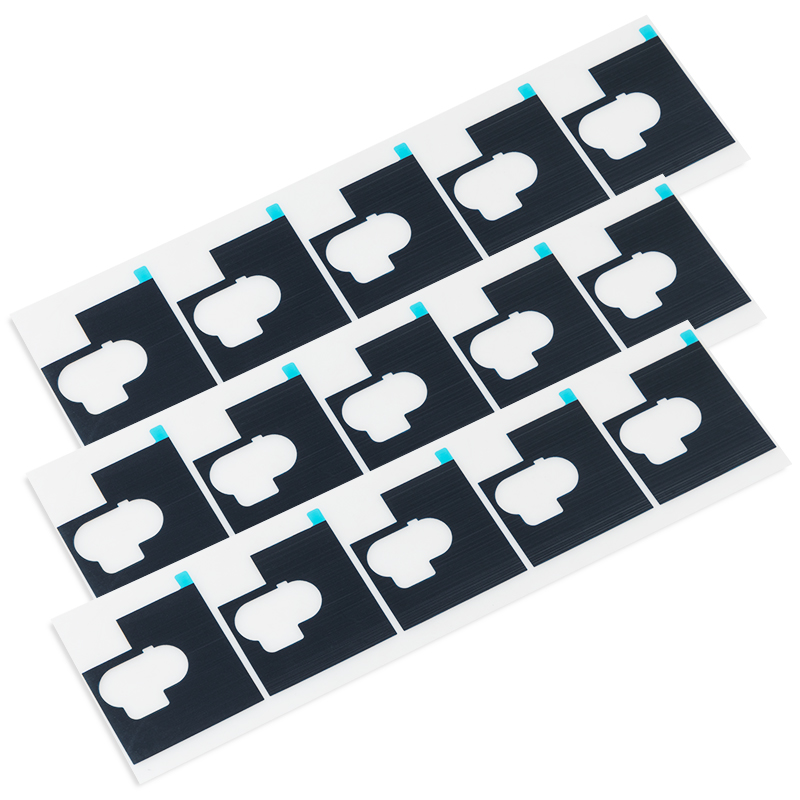

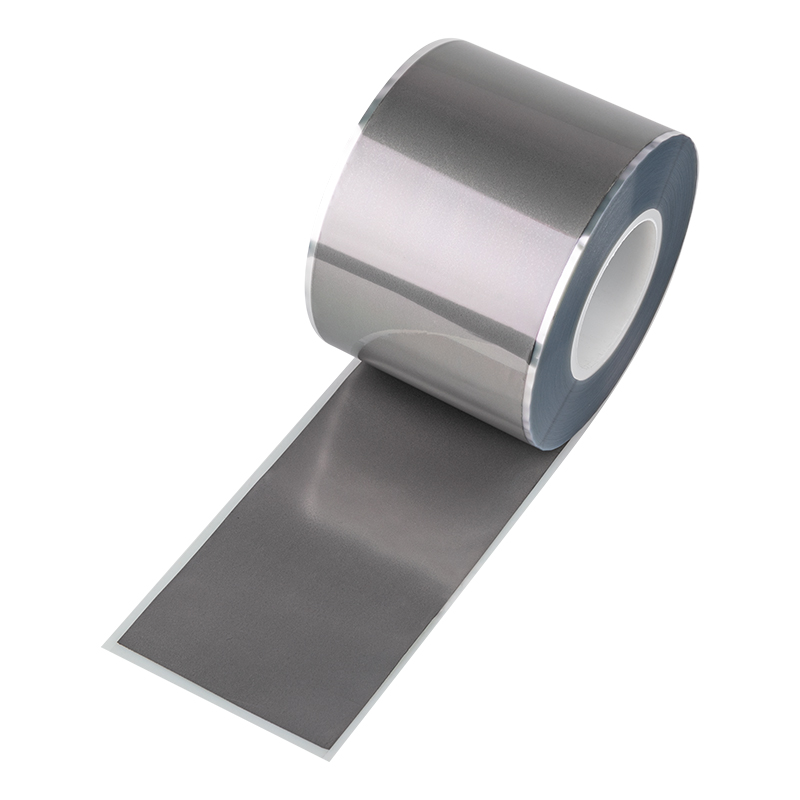

0.017mm-0.07mm graphite thermal pad smartphone thermal pad
Product Description:
|
Model |
HCGS-17 |
HCGS-25 |
HCGS-40 |
HCGS-70 |
|
|
Thickness (mm) |
0.017±0.005 |
0.025±0.005 |
0.04±0.005 |
0.07±0.010 |
|
|
Thermal conductivity (W/MK) |
X, Y direction |
1700-1800 |
1500-1600 |
1300-1500 |
700-900 |
|
|
Z direction |
15 |
15 |
15 |
15 |
|
Thermal diffusivity (cm^2/s) |
9.39-9.94 |
8.40-8.96 |
8.00-8.96 |
7.62-9.80 |
|
|
Density (g/cm3) |
2.13 |
2.10 |
1.65 |
1.08 |
|
|
Specific heat(50 °C )(J/gK) |
0.85 |
0.85 |
0.85 |
0.85 |
|
|
Continuous Temperature Resistance (°C ) |
400 |
400 |
400 |
400 |
|
|
Tensile Strength (MPa) |
X, Y direction |
39 |
28 |
25 |
20 |
|
|
Z direction |
0.1 |
0.4 |
0.4 |
0.4 |
|
Bending test (times) (R5/180°) |
>10000 |
>10000 |
>10000 |
>10000 |
|
|
Conductivity (S/m) |
2.0x10^6 |
2.0x10^6 |
2.0x10^6 |
0.96x10^6 |
|

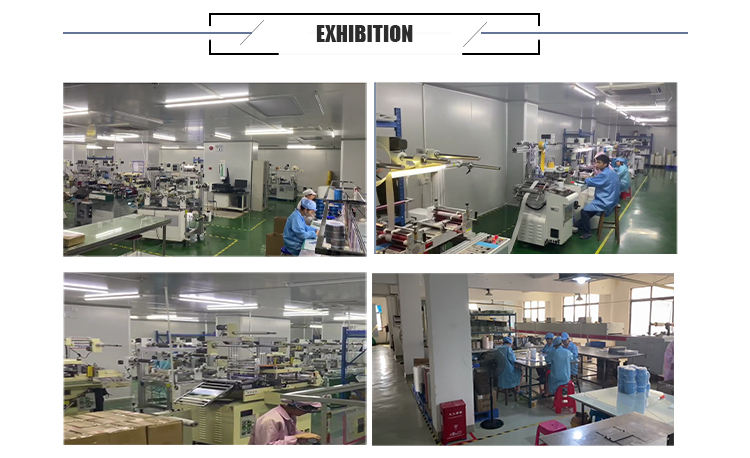

Shenzhen Zhenzhixing Technology Co., Ltd. was established in 2009 and now has a Shenzhen factory and a new R&D and production base in Jiangxi. The total registered capital is 11 million RMB and there are 120 employees. The company has passed ISO 9001: 2008 international quality management system certification, the company's products have passed UL94-VO, the main products are artificial graphite sheet, natural graphite sheet, high thermal conductivity silicone grease (paste), high thermal conductivity silicone pad, potting silicone, thermal tape , thermal conductive silica gel mud, thermal fluid silica gel, conductive paste and other electrical materials (can be developed and customized for customers), and is one of the largest and most complete suppliers of comprehensive solutions for thermal conductive materials, insulating materials, and shielding materials in China.
Shenzhen Zhenzhixing Technology Co., Ltd. focuses on meeting customer needs, wins with high quality, quick response and flexibility, and cooperates with Changhong, Panasonic, Foxconn, Midea, ZTE, Huawei and other long-term customers.
|
our service |
|
1.more than10 years of TIM experience |
|
2. Professional R&D team |
|
3. One-stop service for thermally conductive materials |
|
4. Support customized orders, including size, shape, color and thermal conductivity, or can be glued or fiberglass on one or both sides according to your needs |
|
5. Provide free samples |
|
6. The manufacturer offers the best price |
|
7. Good quality and fast delivery |
|
8. Professional after-sales service |
FAQ:
Q1: Do you have any MOQ?
A1: There is no MOQ for standard products.
Q2: Do you provide samples?
A2: Yes, we can, and can deliver within 24 hours after stock confirmation.
Q3: Are you a factory or trading company?
A3: We are a professional manufacturer of graphite products for more than 14 years.
Q4: What is the lead time for mass production?
A4: The lead time for mass production is about 7- 10 days.
Q5: What is your payment method?
A5: Accept TT, Paypal, West Union, L/C, etc.
Q6: Can you provide finished product processing service?
A6: Yes, we can provide finished products after die cutting.
