Non-Slip Marina Decking Mini Mesh Grit Top Fiberglass grp frp Grille/Mesh

  • $6.00 / 1 - 49 meters
    $5.00 / 50 - 4999 meters
    $3.00 / 5000 - 9999 meters
    $1.80 / >=10000 meters
  • 1 meter
  • Zaoqiang Longtime FRP Product Co., Ltd.
  • Hebei, China
  • Ms Angela Liu

Product Detail

technology:High temperature film pressing, molding or pultrusionOrigin:Hebei china
Package preview:application:Pedestrian zones, bike lanes, roads, platforms, floors, decks, tree protection
Supply capacity:300 sets per day for frp gratingpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
brand:long timeGlass fiber content:24% - 30%
port:Tianjin harborName:Durable Pool Gutter Grate
model:LTGT-34custom made:accept
Surface treatment:non-slipPackaging Details:Packing: standard export wooden pallet
Processing services:Forming, cuttingcolor:Black, gray, green, blue, yellow, etc.
Grid size:19*19mm/38*38mm/40*40mm/50*50mmOther names:Fiberglass molded rainwater grating
Material:resin fiberglass composite

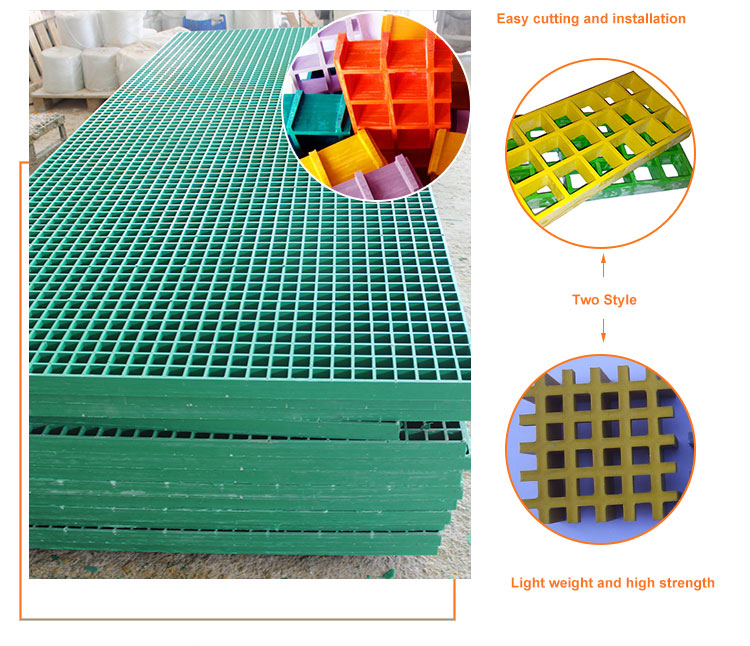

Non-Slip Marina Decking Mini Mesh Grit Top Fiberglass grp frp Grille/Mesh

Product Description



Molded grating process

The molded grating is made by laying continuous glass fibers in the mold along the vertical and horizontal directions, and impregnating them with resin layer by layer. After the weaving process is complete, the mold is heated to cure the panels. After curing, the panels are released from the mold. Standard panels will have a meniscus (concave) top surface. Any process, such as post-grit, can be bonded as a secondary operation. This continuous process produces a complete one-piece panel with excellent corrosion resistance and two-way strength.



excellent performance

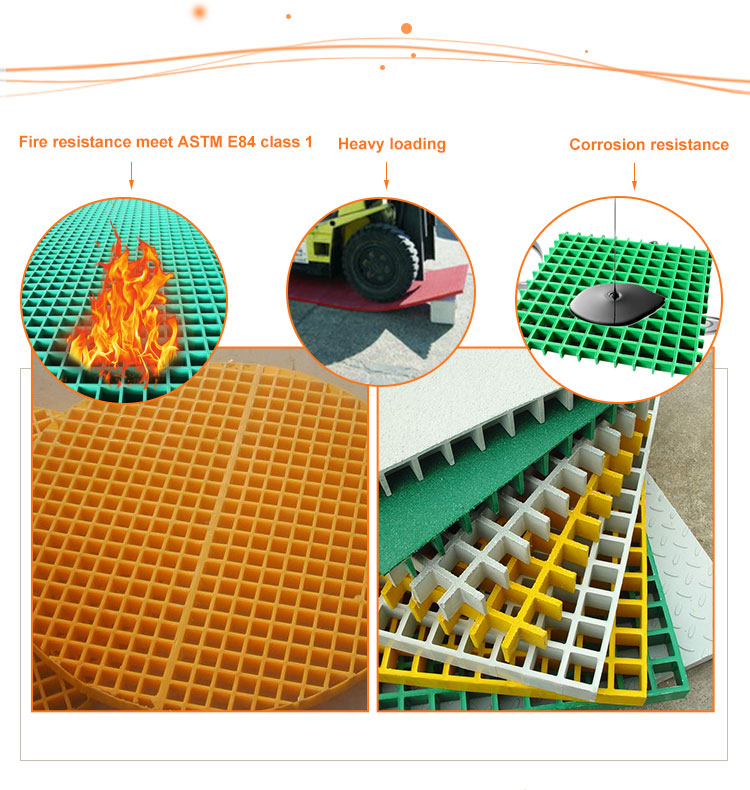

1) Anti-corrosion/anti-slip 2) Fire-resistant/impact-resistant 3) High strength-to-weight ratio 4) Easy to install and maintain



introduce:

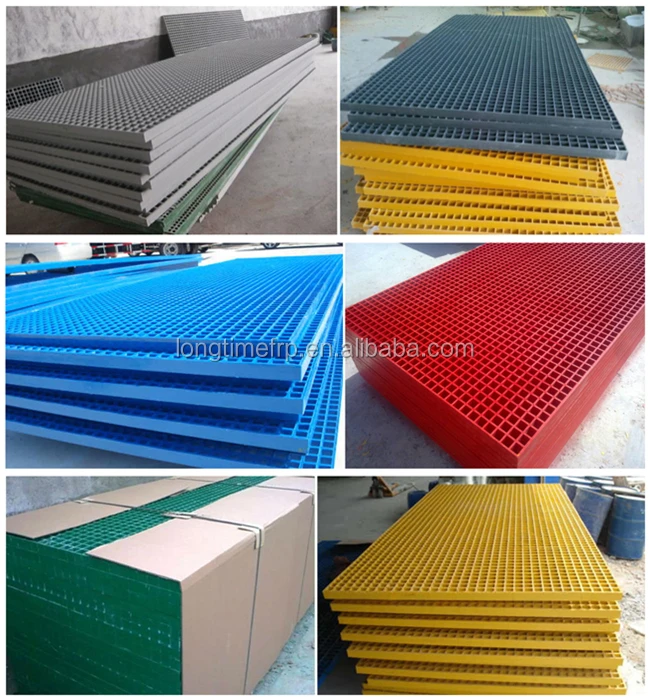

Flame retardant frp molded fiberglass grating grit grating 38*38*38

  • Technology: Molded, Extruded
  • Color: yellow, green, gray, red, black or as your request
  • Mesh size: 1.5*1.5" (38mm*38mm), 2.0*2.0" (50.8mm*50.8mm), 40mm*40mm, 20mm*20mm, 0.75*0.75" (19mm*19mm), 1"*4"( 25.4mm*101.6mm), 1"*6"(25.4mm*152.4mm)
  • Standard panel sizes: 3'x10', 3'x12', 4'x8', 4x10', 4'x12, 5'x13' other sizes upon your request.
  • Surface: Frosted, Concave, Flat, Checkered Plating
  • Resin: ortho polyester (GP), vinyl ester (VE), phenolic resin
  • Flame retardant frp molded fiberglass grating grit grating 38*38*38
thing

thickness

mm

grid size

mm*mm

panel size

mm*mm

weight

kg/square meter

01 15 38*38 1220*3660 7
02 15 50*50 1220*3660 6.5
03 25 25*100 1010*3010 12.4
04 25 19*19 1220*3660 12.5
05 30 19*19 1220*3660 21.5
06 30 38*38 1220*4040 15.1
07 38 19*19 1220*3660 22.8
08 38 38*38 1000*4040 19.5
09 38 38*38 1220*3660 19.5
10 40 40*40 1250*3690 19.3
11 50 50*50 1220*3660 21.5



packaging details Wooden pallets, cartons, wooden boxes, we can also according to customer's requirements
Shipping Details Within 20 days after receiving the advance payment
contact us

Thank you for viewing our products, please send your inquiry details below, click "send" Now!

Ada

Whatsapp/WeChat: +8615133116958
