Ex-factory price graphite rod/graphite rod

Product Detail

Compressive strength:80 MPaPorosity(%):12%
Compressive strength:45-65Mpashape:columnar
payment terms:L/C, Western Union, T/Tapplication:industry
Packaging Details:Wooden box or according to customer requirementssize:can be customized
Name:ISO compacttype:High Strength Isostatic Graphite Rod
color:BlackBulk density (g/cm3):1.85 g/cm3
Key words:graphite rodOrigin:Henan, China
brand:SkyResistance (μΩ.m):8-10 ohms
Package preview:Supply capacity:Overtime production is available for urgent orders of 5000 pieces per week
model:KYM-5Slength:200-1500mm
product name:Supplier Solid Carbon Graphite Rod Free SampleBulk density:1.58-1.85 g/cm3
port:Qingdao, ChinaMaterial:petroleum coke

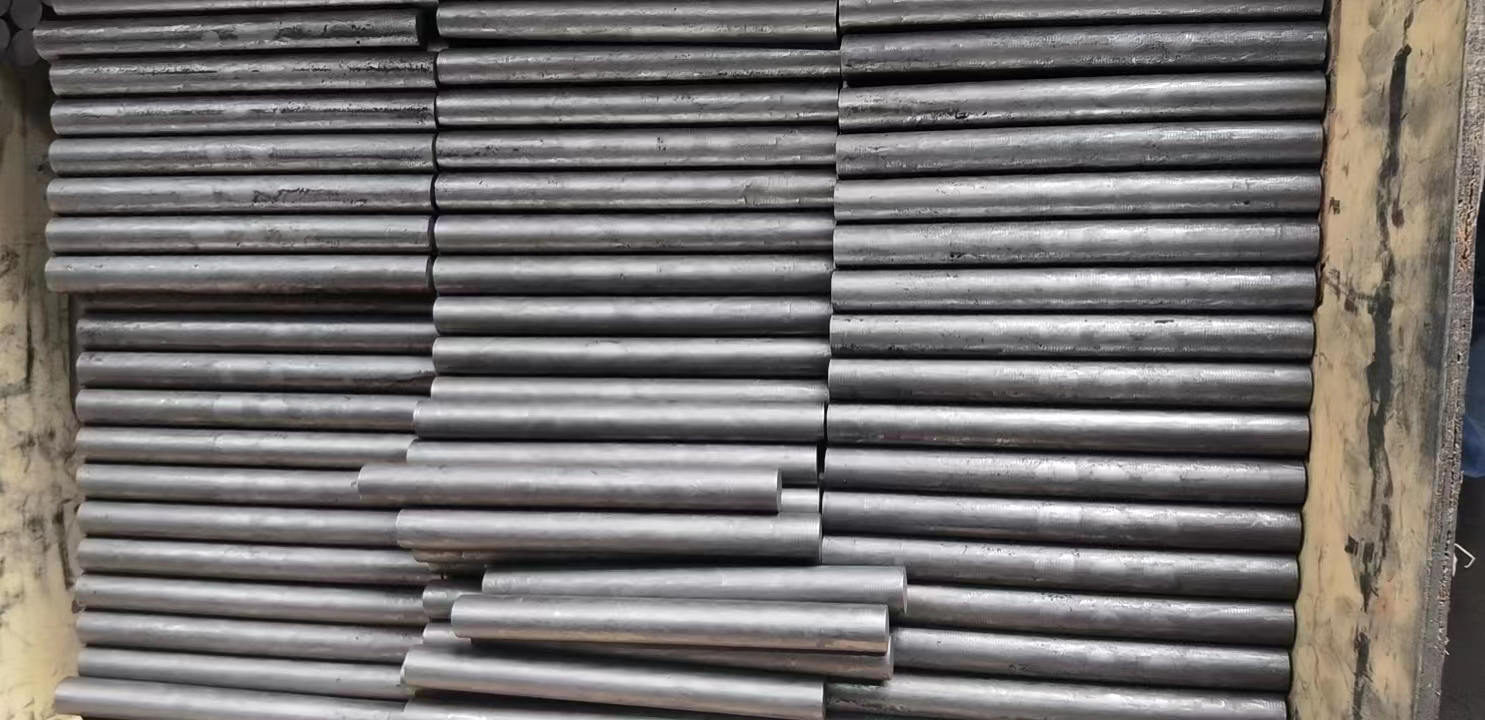

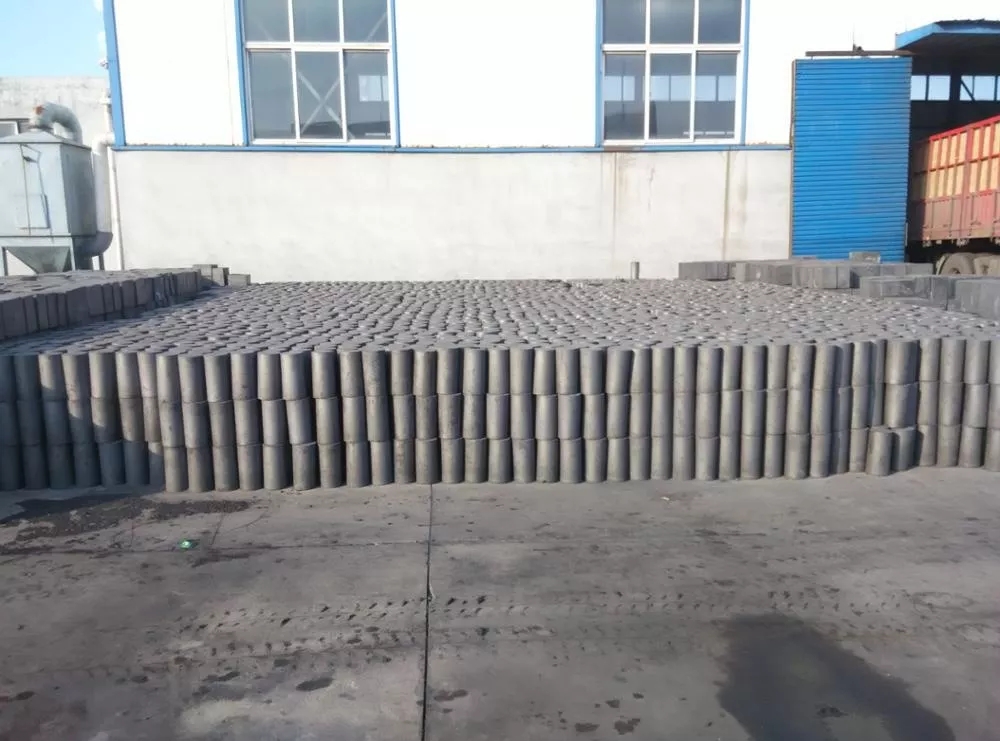

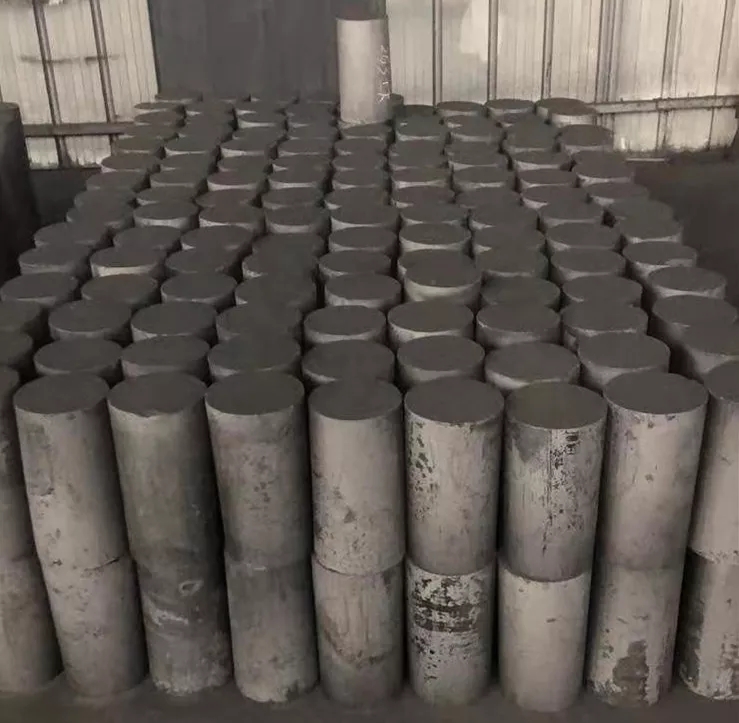

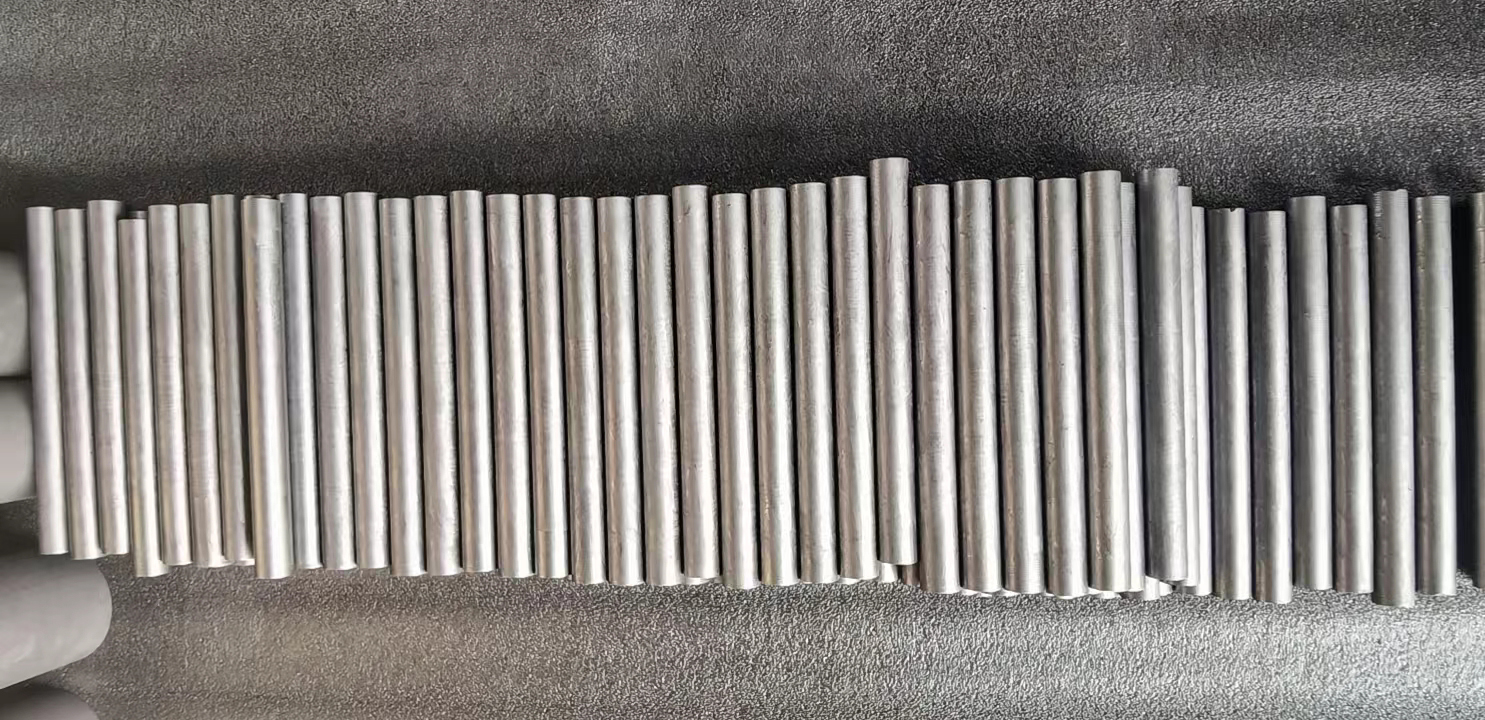

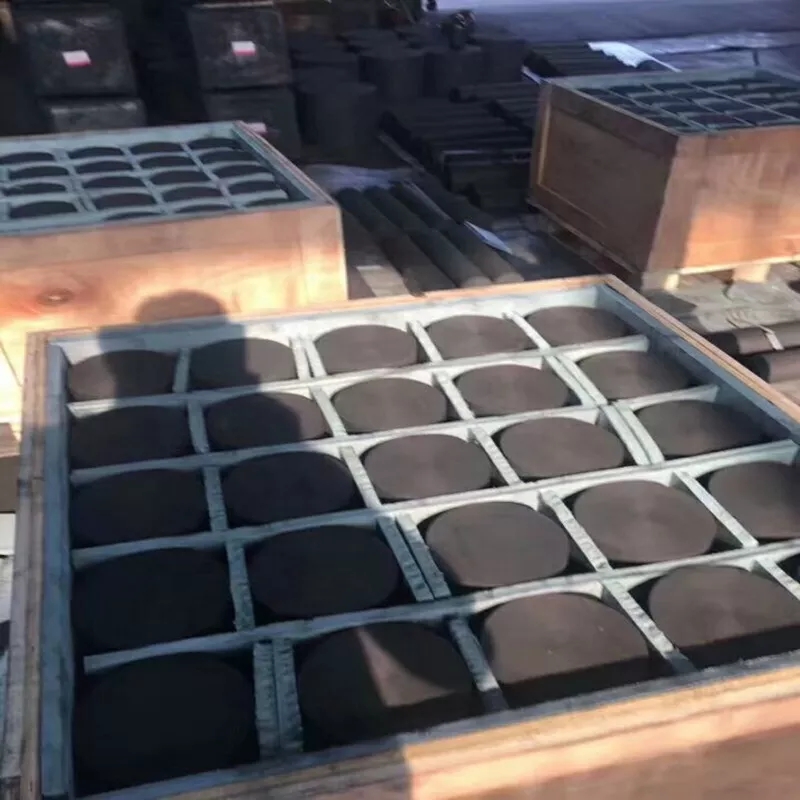

product display
future:
1. Low resistance 2. Good electrical and thermal conductivity 3. High oxidation resistance 4. Strong resistance to thermal shock and mechanical shock 5. High mechanical strength 6. High processing accuracy, etc.
Graphite rods are most used in the heating elements of high-temperature vacuum furnaces, and the maximum temperature of graphite rods can reach 3000 °C. It is also widely used for heat source or heat radiation in high temperature environment and other various mechanical friction conditions. It has the characteristics of high thermal conductivity, high thermal stability, temperature shock resistance and excellent electronic properties. Uses: 1. Used in industrial furnaces as structural parts or heating parts, such as graphite heating rods, graphite electrode rods, graphite support rods, etc.
2. Used as a graphite stirring rod for metal melting such as gold and silver stirring rods.
3. As a graphite lubricating rod.
4. Spectral analysis of high-purity graphite rods.
5. Graphite anode rod for electrolysis.
6. Graphite cylindrical rod material for casting, casting, sintering, electric discharge machining and further processing into graphite small parts
Product Description
Graphite material technical reference:
2. Advantages of carbon blades
(1) High purity
(2) Low wear rate
(3) Good hardness
(4) Self-lubricating, dry running
(5) Low coefficient of thermal expansion
(6) Dimensional stability
(7) Compatible with food and medicine
(8) Good impact resistance
(9) Excellent strength
(10) High density, high mechanical strength
(11) OEM service welcome

The applications of our grades are as follows:
Specification
Performance indicators of isostatic graphite in the EDM industry:
Model
density
Resistivity
Shore hardness
Compressive strength
Bending strength
average particle size
g/cubic centimeter
μΩm
HSD
MPa
MPa
Micron
KYX-7
1.76
12 to 16 years old
40
80
40
8
KYX-60
1.78
12 to 16 years old
45
Post-90s
45
4
KYD-8
1.84
12 to 16 years old
70
105
55
6
KYX-70
1.85
12 to 16 years old
55
100
50
8
Performance indicators of isostatic pressing/formed graphite in other industries:
Model
density
Resistivity
Shore hardness
Compressive strength
Bending strength
average particle size
g/cubic centimeter
μΩm
HSD
MPa
MPa
Micron
KYM-5
1.8
8~10 people
45
80
40
12
KYD-6
1.81
11~14
60
Post-90s
45
8
KYD-8
1.86
10~14
72
120
55
6
KYD-9
1.9
10~14
75
125
60
2~4
General specifications, other sizes can be customized
square product
900*300*200mm
600*500*200mm
500*400*200mm
550*450*200mm
400*300*200mm
500*300*200mm
2400*500*300mm
2200*700*350mm
1850*650*400mm
1400*700*300mm
1000~2200*500*300mm
600*500*400mm
round product
Φ90*120mm
Φ120*200mm
Φ160*260mm
Φ135*260mm
Φ180*260mm
Φ210*260mm
Φ240*410mm
Φ260*260mm
Φ310*310mm
Φ980*1000mm
Φ920*850mm
Φ850*850mm
Φ750*700mm
Φ220*2100mm
Φ330*1200mm
Φ620*620mm
